Deployment without Silicom card

Deploying an I Series Appliance | Forcepoint Web Security Cloud

If you have deployed the VM without a Silicom card, you must verify the MAC addresses that have been generated:

Initially, no MAC addresses are assigned to the machine NICs. Turn on the new VM, then right-click the VM and select Edit Settings.

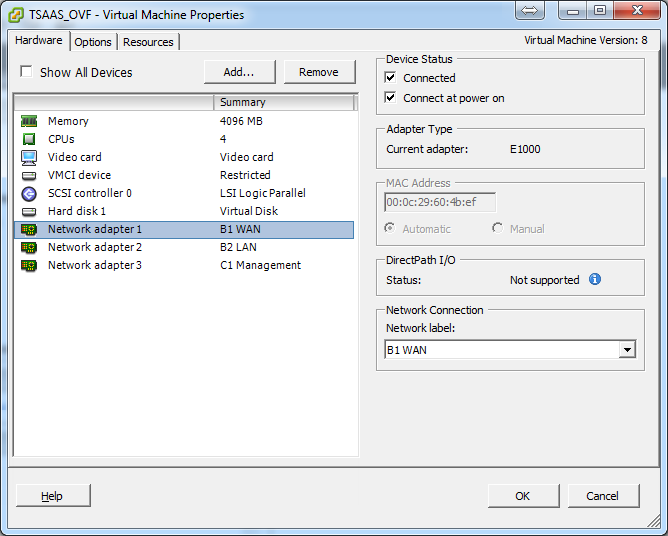

Each NIC should now have a MAC address:

Confirm that the generated MAC addresses are in alphabetical order, with B1 WAN having the lowest address, followed by B2 LAN and then C1 Management. If this is not the case, change the mapping of your NICs as follows:

Select the NIC with the lowest MAC address.

Under Network Connection, change the Network label to B1 WAN.

Repeat the Network label change for the next lowest MAC address (setting it to B2 LAN) and finally the highest MAC address (setting it to C1 Management).

Click OK when done.
