Changing the TRITON management server IP address or name
Changing the TRITON management server IP address or name
Topic 51300 | Web, Data, and Email Solutions | v8.0.x, v8.1.x | Updated 12-Oct-2015
This collection of articles describes the configuration changes needed if you modify the IP address or hostname of the TRITON management server.

*
Note
In v8.x, you cannot modify management server domains. This would require you to change the local administrator user name and the installer does not allow this.
These articles also describe how to move the Web or Data module of the TRITON Manager to a new machine. See:
*
Changing the IP address of the TRITON management server
*
Changing the hostname of the TRITON management server
*
Configuring TRITON Infrastructure to use a new IP address or hostname
*
Configuring Tomcat to a use new local IP address
*
Configuring a new hostname for web protection management components
*
Changing the IP address for TRITON AP-DATA management components
*
Changing the hostname for TRITON AP-DATA management components
*
Configuring a new hostname for web protection management components
*
Updating the Log Database location for TRITON AP-EMAIL
*
Re-registering TRITON AP-EMAIL with data protection components
*
Migrating the Data module of the TRITON Manager from server A to server B
*
Re-registering TRITON AP-DATA components
*
Creating Apache SSL Certificates
These articles cover the following management components. Any other Websense components on the management server machine may need additional configuration that is not covered in this article.
*
For TRITON infrastructure:
*
Websense TRITON Manager
*
Websense TRITON Web Server
*
Websense TRITON Settings Database
*
For web protection solutions:
*
Websense Control Service
*
Websense TRITON - Web Security
*
Websense Web Reporting Tools
*
Websense RTM Client
*
Websense RTM Database
*
Websense RTM Server
*
Websense Explorer Report Scheduler
*
Websense Information Service for Explorer
*
Websense Reporter Scheduler
*
Websense Linking Service
*
(not recommended) Websense Log Server
If Log Server is installed on the machine, remove it before changing the IP address.
*
For TRITON AP-DATA:
*
Websense TRITON management server
*
Websense Data Security Manager
*
Websense Data Security Policy Engine
*
Websense Data Security PreciseID Database
*
Websense Data Security Web Server
*
Websense Data Security Work Scheduler
*
For TRITON AP-EMAIL:
*
Websense TRITON - Email Security
*
(not recommended) Websense Email Log Server
Each module of the TRITON Manager must be configured separately. Depending on your subscription, you may not have all modules enabled.
To determine which TRITON Manager modules are active in your deployment:
1.
In TRITON Manager, go to Help > About TRITON Manager.
2.

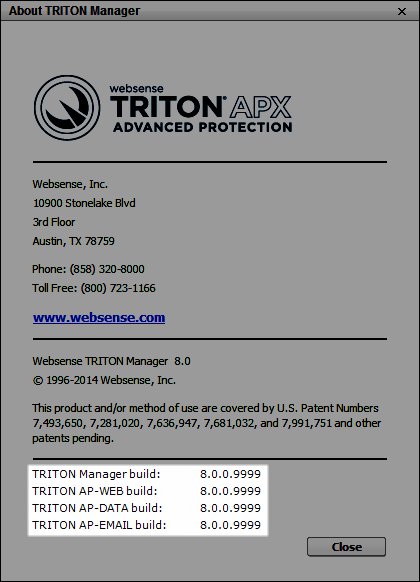

The About TRITON Manager dialog box lists the modules that are active (highlighted in illustration below).
