Navigating in the TRITON console

TRITON Console Help | Web, Data, and Email Security Solutions | v7.8.x

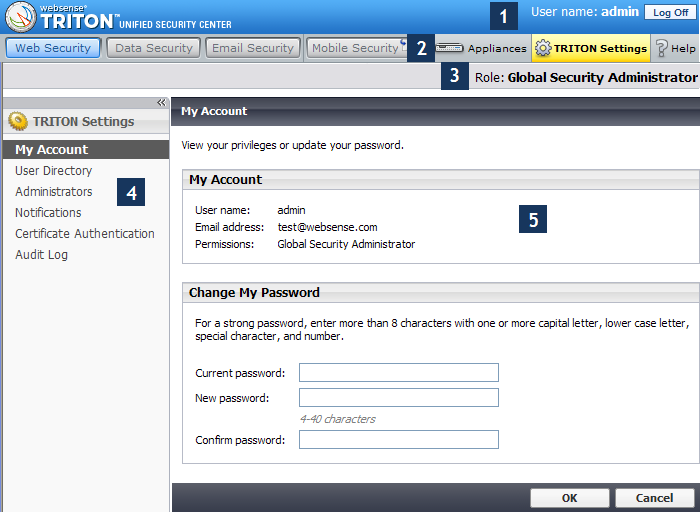

The TRITON Settings interface can be divided into 5 main areas:

The banner shows:

Your current logon account

A Log Off button, for when you're ready to end your administrative session

The TRITON toolbar indicates which module is active, and lets you launch other TRITON modules. It also provides access to Help, tutorials, the Technical Library, and other useful information.

When you log on to the TRITON console, the module you last accessed is active and the button for that module in the TRITON toolbar is yellow. Buttons for modules that are installed but not currently active are blue, and buttons for uninstalled modules are grey.

The module toolbar contains information and options relevant to the module that is currently active. If you are configuring TRITON settings or appliances, it contains your TRITON administrator permissions.

The navigation pane contains the available navigation choices for the TRITON module or TRITON configuration option that is currently selected. The content pane varies according to the selection in the navigation pane.

For more information about specific modules, see:

Data Security Help

Email Security Help

Web Security Help
