Creating a TRITON Management Server

Deployment and Installation Center | Web, Data, and Email Protection | v8.0.x

Applies to:

In this topic

TRITON AP-WEB and Web Filter & Security, v8.0.x

TRITON AP-DATA, v8.0.x

TRITON AP-EMAIL, v8.0.x

Installing the TRITON Manager

The TRITON management server is the Windows machine that hosts the TRITON Manager, the management and reporting console for Websense web, data, and email protection solutions.

Additional, optional components can also run on the machine.

The TRITON management server is created by installing these components on a suitable machine (see System requirements for this version).

Typically, there is only one TRITON management server in a deployment. It serves as the central point for management, configuration, and reporting.

Installing the TRITON Manager

Log on to the installation machine with an account having domain and local administrator privileges.


	Important If you are installing data protection components, do not change this account after installation. Be sure it's a dedicated account that you want installed services to use when interacting with the operating system—the service account. If you must change the account, contact Websense Technical Support first.

Double-click the installer file to launch the Websense TRITON Setup program.

A progress dialog box appears, as files are extracted.

On the Welcome screen, click Start.

On the Subscription Agreement screen, select I accept this agreement and then click Next.

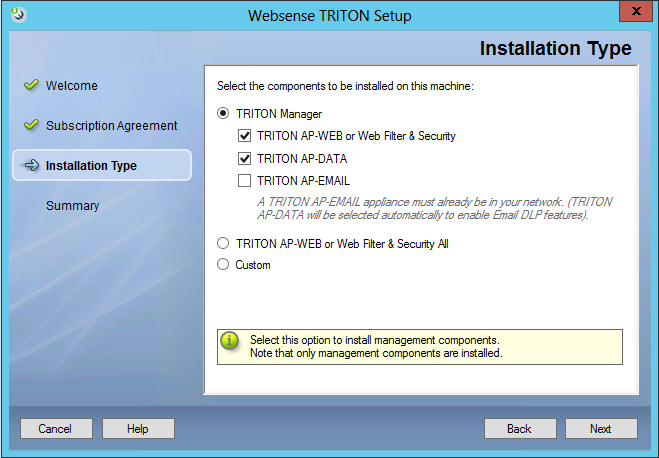

On the Installation Type screen, select TRITON Manager and the modules you want to install (Web, Data, or Email).

See the following table for information about which modules you should select for installation.


Solution	TRITON Manager module
Solution	Web	Data	Email
TRITON AP-WEB or Web Filter & Security	X
TRITON AP-WEB with the Web DLP module	X	X
TRITON AP-DATA		X
TRITON AP-EMAIL		X	X
Note: If your subscription includes a combination of these solutions, install all of the modules required by them. For example, if your subscription includes TRITON AP-WEB with the Web DLP module and TRITON AP-EMAIL, install all 3 TRITON Manager modules.


	Important To install the Web module of the TRITON Manager, an instance of Policy Broker and Policy Server must be already installed and running (see Installing components via the Custom option). You are prompted for the Policy Server IP address during console installation. In appliance-based deployments, Policy Broker and Policy Server reside on the full policy source appliance.

When you select the Email option, the Data option is also selected. Data components are required for Email DLP module features.


	Important To install the Email module of the TRITON Manager, an Email mode appliance must already be running. You will need to provide the appliance C interface IP address during console installation. The appliance E1 (and E2, if used) interface must also be configured in the Appliance manager before you install the Email module of the TRITON Manager.

On the Summary screen, click Next to continue the installation.

TRITON Infrastructure Setup launches.

Follow the instructions in Installing TRITON Infrastructure.

When you click Finish in TRITON Infrastructure Setup, component installers for each module selected in the Module Selection screen (Step 5) are launched in succession.

Only the component installers for the modules you have selected are launched. For example, if you select only Web and Data modules, the Email module installer is not launched.

Complete the following procedures for the modules you have selected. For each module, a component installer will launch. The component installers launch in the order shown here.

Installing the Web module of the TRITON Manager

Installing the Data module of the TRITON Manager

Installing the Email module of the TRITON Manager
