Booting the switch to Dell settings

Connect to the line console with a serial cable.

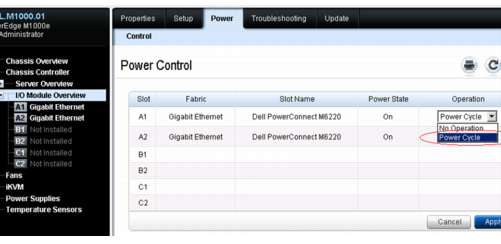

1.	Log on to the CMC and choose I/O Module Overview at the left. Select the appropriate switch and then initiate a Power Cycle, as shown below:

2.	Wait for the Boot Menu to appear on the console, and then choose: 2 - Start Boot Menu

3.	From the list of options that appears, choose: 10 - Restore configuration to factory defaults (delete config files)

4.	Select 1-Start operational code to reboot the switch.

5.	Wait for the console prompt to appear: console>

6.	Copy and paste the following configuration commands into the console for switch A2 (all commands also apply to switch A1, but IP address [line 6] for switch A1 is 169.254.253.1):

enable

configure

vlan 4003

exit

interface vlan 4003

ip address 169.254.253.2 255.255.255.0

exit

interface range gigabitethernet 1/0/1-16

switchport mode general

switchport general allowed vlan add 4003 tagged

exit

enable password websense

username root password websense

exit

write

y

exit

7.	Remember to configure the switch mode. (See Configuring the switch mode.)
