Deployment with Silicom card
Deploying an I Series Appliance | Forcepoint Web Security Cloud
If you have deployed the VM with a Silicom card, you should connect the Silicom Card NICs to the new VM as follows:
1.

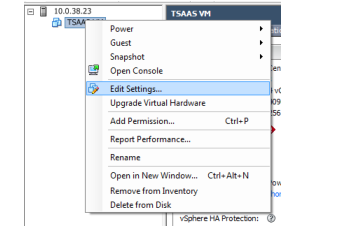

Right-click the new VM, and select Edit Settings.
2.
Click Add.
3.

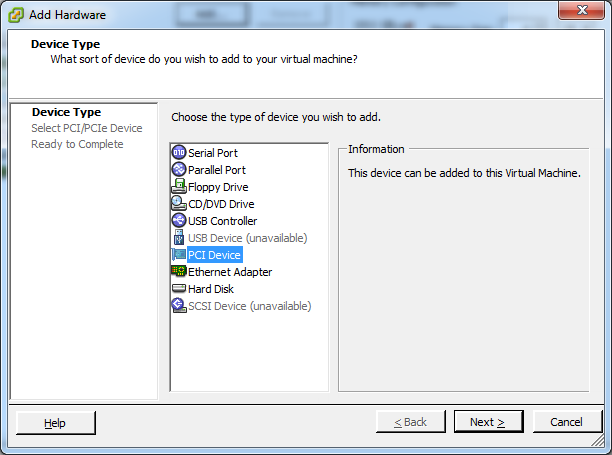

Select PCI Device from the Device Type list, then click Next.
4.

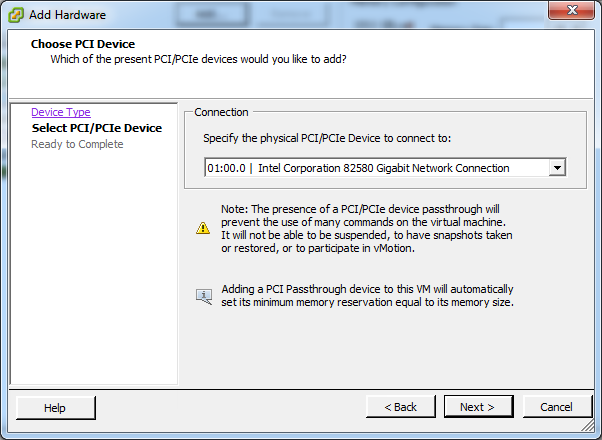

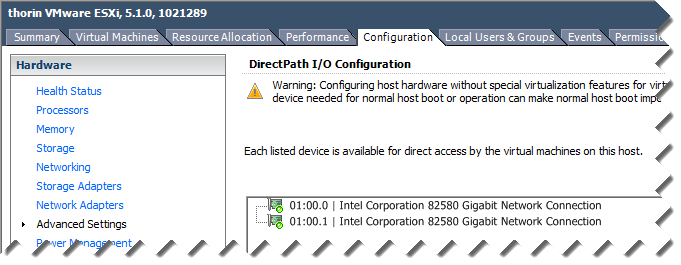

Choose the first NIC of the Silicom card (this is the first entry displayed on the Configuration tab > Advanced Settings page).
5.
Click Next, then click Finish.
6.
Repeat steps 2-5 for the second Silicom NIC.
7.

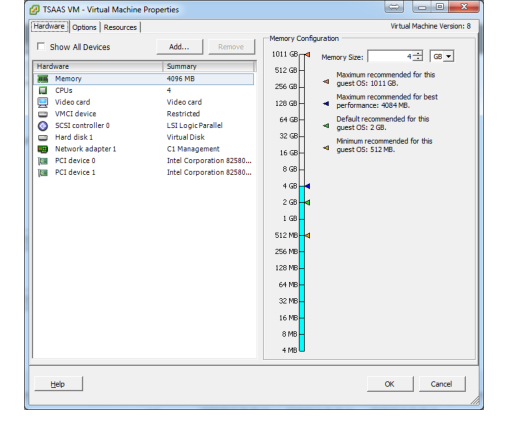

Click OK on the Virtual Machine Properties page to see the final result:
