Creating a TRITON Management Server

Deployment and Installation Center | Web, Data, and Email Security Solutions | Version 7.8.x

Applies to:

In this topic

Web Filter, Web Security, and Web Security Gateway (Anywhere), v7.8.x

Data Security, v7.8.x

Email Security Gateway (Anywhere), v7.8.x

Installing the TRITON Unified Security Center

The TRITON management server is the Windows machine that hosts the TRITON Unified Security Center, the management and reporting console for Websense Web Security, Data Security, and Email Security solutions.

Additional, optional components can also run on the machine.

The TRITON management server is created by installing these components on a suitable machine (see System requirements for this version).

Typically, there is only one TRITON management server in a deployment. It serves as the central point for management, configuration, and reporting.

Installing the TRITON Unified Security Center

Double-click the installer file to launch the Websense TRITON Setup program.

A progress dialog box appears, as files are extracted.

On the Welcome screen, click Start.

On the Subscription Agreement screen, select I accept this agreement and then click Next.

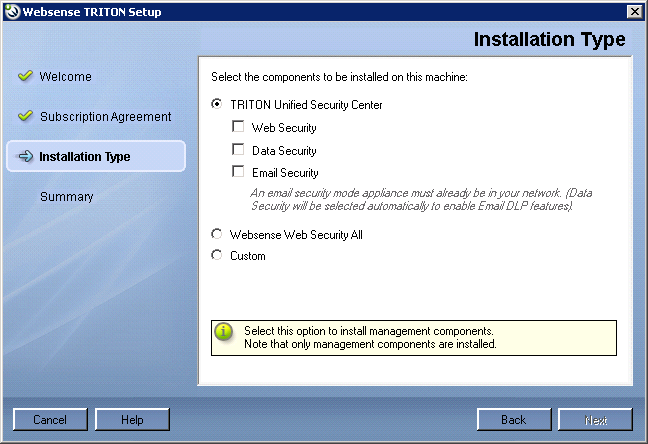

On the Installation Type screen, select TRITON Unified Security Center and the modules you want to install (Web Security, Data Security, and Email Security).


	Note The TRITON Unified Security Center modules are management consoles. Selecting them does not install other security or filtering components. Non-management components are installed using the Websense Web Security All or Custom options.

See the following table for information about which modules you should select for installation.


Solution	TRITON Unified Security module
Solution	Web Security	Data Security	Email Security
Web Filter, Web Security, and Web Security Gateway	X
Web Security Gateway Anywhere	X	X
Data Security		X
Email Security Gateway (Anywhere)		X	X
Note: If your subscription includes a combination of these solutions, install all of the modules required by them. For example, if your subscription includes both Web Security Gateway Anywhere and Email Security Gateway, install all 3 modules.


	Important To install the Web Security module of the TRITON Unified Security Center, an instance of Policy Broker and Policy Server must be already installed and running (see Installing components via the Custom option). You are prompted for the Policy Server IP address during console installation. In appliance-based deployments, Policy Broker and Policy Server reside on the full policy source appliance.

When you select Email Security, Data Security is also selected. The Data Security module is required for email DLP (data loss prevention) features, included with Email Security Gateway (Anywhere).


	Important To install the Email Security module of the TRITON Unified Security Center, an Email Security Gateway appliance must already be running. You will need to provide the appliance C interface IP address during console installation. The appliance E1 (and E2, if used) interface must also be configured in the Appliance manager before you install Email Security management components.

On the Summary screen, click Next to continue the installation.

TRITON Infrastructure Setup launches.

Follow the instructions in Installing TRITON Infrastructure.

When you click Finish in TRITON Infrastructure Setup, component installers for each module selected in the Module Selection screen (Step 4), are launched in succession.

Only the component installers for the modules you have selected are launched. For example, if you select only Web Security and Data Security, the Email Security installer is not launched.

Complete the following procedures for the modules you have selected. For each module, a component installer will launch. The component installers launch in the order shown here.

Installing Web Security management components

Installing Data Security management components

Installing Email Security management components
