New for v8.3.0 TRITON appliances
Release Notes | TRITON Appliances | 17-May-2017
Forcepoint is pleased to release version 8.3.0 of the Forcepoint appliance infrastructure. Changes in this update improve every aspect of TRITON appliance form and function, and establish the foundation for future advances.
Because of the scope of the changes, these release notes are lengthy.
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
Forcepoint TRITON appliance architecture
The Forcepoint TRITON appliance infrastructure has a new architecture. The new architecture:
*
*
*
*
*
*
*
*
LXC replaces the former XEN and guests architecture.
Benefits of LXC include:
*
*
*
*
*
*
Modules
The TRITON appliance controller software (installed in the base operating system) and the functional units of TRITON software installed in the LXC containers, are each a module of the appliance. TRITON appliance modules have the following names:
email (old name: esg)
web (old name: wse)
proxy (old name: wcg)
network-agent (old name: na)
TRITON solutions on TRITON appliance platforms














For detailed information about deploying any of the TRITON AP-DATA solutions on TRITON appliances, see the TRITON AP-DATA section of the Forcepoint documentation page.
For detailed information about deploying TRITON AP-WEB Cloud with an i-Series appliance, see the Forcepoint i-Series Appliance section of the Forcepoint Documentation page.
V-Series specifications
1 rack-unit form factor
See the V-Series Appliance datasheet (PDF on the Forcepoint website) for specifications of the currently shipping model.
V10000
Supported solutions
*
*
Supported models with v8.3
*
*
*
Network interfaces
All V10000 appliances come with 6 physical Ethernet interfaces
C — Supports TRITON appliance management communication
P1, P2 — Support Content Gateway (web proxy) traffic (TRITON AP-WEB only)
E1, E2 —Support MTA traffic (TRITON AP-EMAIL)
N — Supports Network Agent (Web protection solutions)
Interface bonding: With TRITON AP-WEB and TRITON AP-EMAIL, interfaces P1 and E1 can be bonded, and interfaces P2 and E2 can be bonded.
V5000 specification
Supported solutions
*
*
*
Supported models with v8.3
*
*
*
Network interfaces
All V5000 appliances come with 4 physical Ethernet interfaces.
C — Supports TRITON appliance management communication
P1, P2 — Support Content Gateway (web proxy) traffic (TRITON AP-WEB) or MTA traffic (TRITON AP-EMAIL)
N — Supports Network Agent (Web protection solutions)
X-Series specifications
10 rack-unit form factor; chassis hosts up to 16 X10G blade servers
See the X-Series Appliance datasheet (PDF on the Forcepoint website) for specifications of the currently shipping model.
Supported solutions
*
*
Supported models with v8.3
*
*
Network interfaces
All X-Series appliances come with 2 PowerConnect M6220 switches. Each supports 2 10Gb SFP+ ports.
All X10G security blades support 3 virtual Ethernet interfaces.
C — Supports TRITON appliance management communication
P1, P2 — Support Content Gateway (web proxy) traffic (TRITON AP-WEB) or MTA traffic (TRITON AP-EMAIL)
Forcepoint APX Virtual Appliance specifications
ESXi VMware
New for v8.3.0, Forcepoint APX Virtual Appliance certified with ESXi v6.0, and supported on v5.5 and other versions of 6.x.
Supported solutions
*
*
*
TRITON AP-EMAIL VM specification
The install OVA creates a virtual machine with the following specifications:
*
*
*
*
*

Important
Network interfaces:
All TRITON AP-EMAIL VMware virtual appliances come with 4 virtual Ethernet interfaces.
C — Supports TRITON appliance management communication
P1, P2 — Support MTA traffic
N — Reserved
TRITON AP-WEB and Forcepoint Web Filter & Security VM specification

Note
The policy mode Filtering only is not supported on VMware virtual appliances with version 8.3.0.
The install OVA creates a virtual machine with the following specifications:
*
*
*
*

Important
Network interfaces
All TRITON AP-WEB and Forcepoint Web Filter & Security VMware virtual appliances come with 4 virtual Ethernet interfaces.
C — Supports TRITON appliance management communication
P1, P2 — Support Content Gateway web proxy traffic
N — Reserved; Network Agent and Content Gateway decryption port mirror are not supported on VMware virtual appliances in v8.3.0.
Direct upgrade to v8.3.0
V-Series appliances can be upgraded directly to 8.3.0 from any of these versions:
7.8.4, 8.0.x, 8.1.x, 8.2.x.
X-Series appliances can be upgraded directly to 8.3.0 from any of these versions:
8.0.x, 8.1.x, 8.2.x.

Important
Dual Mode appliances are not supported with version 8.3.0 and higher. Either TRITON AP-EMAIL or the web protection solution must be migrated to a new appliance. For more information, see Dual Mode appliances.
Forcepoint V5000 G2R2 Appliance customers may encounter a memory shortage after upgrading to version 8.2 or later. This issue is the result of newer versions of software requiring additional memory, and was only captured under a very heavy load. A DIMM Kit (2 x 8GB) is certified to expand the physical memory of the V5000 G2R2 Appliance. It is now generally available and recommended for V5000 G2R2 deployment moving to versions 8.2 and later. Please contact your sales representatives for purchase information. For more details, see the related Knowledge Base article and the DIMM Kit installation instructions.
For upgrade instructions, see:
*
*
*
V-Series appliance models supported with version 8.3
Version 8.3.0 is supported on these V-Series appliances:
Older V10000 G2 and V5000 G2 appliances, known as revision 1 (or R1) appliances, are not supported with version 8.0.0 and higher. These models stopped shipping:
If you plan to upgrade from any version of 7.x to any version of 8.x, you should verify the full hardware platform model of the appliances you plan to upgrade.

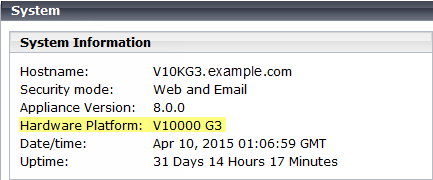

In some cases your hardware platform information is available on the Configuration > System page in the Appliance manager. Refer to the System Information box at the top of the page.
This will tell you if you have a G3 or G4 appliance. However, for V10000 G2 and V5000 G2 machines, the summary does not indicate whether the appliance is an R1 or R2 model.
If you have a G2 appliance, use the following steps to determine if it's R1 or R2 hardware.
1.
2.
Platform hardening
These measures harden all V-Series, X-Series, and Forcepoint APX Virtual Appliances.
*
*
*
*
System logging
TRITON appliances use Python and syslog for system logging. Logs are located in
/var/log/appliances/
Logs are available for:
*
*
To view system logs in the CLI, use the 'show log' commands.
Audit logging
All CLI access and command activity is recorded in an audit log.
To view the log, use the 'show log' commands. For example, to display the last 100 lines of the audit log use:
show log lastline --module app --type audit --line 100
Typical entries look like:
2016-12-13 21:49:30,627 - INFO - appcli[165] - Account admin, logged on from 10.64.161.8, entered view mode.
2016-12-13 21:49:59,042 - INFO - authentication - 13039 - User <admin> attempting to log into API.
2016-12-13 21:49:59,094 - INFO - authentication - 13039 - User <admin> authorization: True
2016-12-13 21:49:59,102 - INFO - common[976] - Account admin, logged on from 10.64.161.8, entered config mode.
No longer supported and notable restrictions
*
*
*
*
*
*
Dual Mode appliances
Version 8.3 does not support single appliances that host both TRITON AP-EMAIL and TRITON AP-WEB or Web Filter & Security. These appliances, known as Dual Mode appliances, have always been limited to the V-Series platform.
The new TRITON appliance architecture streamlines and optimizes the allocation and supervision of platform resources and processes to provide the best performance for the hosted Forcepoint solution. Stability, scaling, and operating efficiencies all improve in the single mode environment.
Before upgrading a Dual Mode appliance to v8.3, either the email or web module must be migrated to a new TRITON appliance. To ease the migration effort, special tools have been developed, and a special procedure is recommended. For details, see Upgrading V-Series Dual Mode Appliances to Version 8.3. Contact your Forcepoint account representative to learn about special promotions for Dual Mode deployments planning a v8.3 upgrade.
V-Series Appliance Manager
In version 8.3, the V-Series Appliance Manager is replaced by the Forcepoint Security Appliance Manager. The Forcepoint Security Appliance Manager will be released in 2017. These release notes will be updated when the Forcepoint Security Appliance Manager becomes available. Until then, TRITON appliances can be fully and completely configured and monitored with the Command-line interface (CLI). And, of course, the CLI remains available after the Forcepoint Security Appliance Manager is released.
A special document is available that maps V-Series Appliance Manager functions to CLI equivalents. See the V-Series: Visual Primer for CLI v8.3 (PDF).
Accessing V-Series appliances
In v8.2 and earlier, V-Series appliances provided a logon portal to the Appliance Manager and Content Gateway Manager (TRITON AP-WEB). The portal could be accessed directly in a browser or, if the appliance was registered in TRITON Manager, via a single sign-on link.
In v8.3, as in past releases, TRITON appliances can be registered in the TRITON Manager, and the single sign-on feature can be enabled. (For details, see Accessing Appliances in TRITON Manager Help.) However, until the Forcepoint Security Appliance Manager is available, the logon portal (accessed via the single sign-on link, directly on port 9447 of the C interface IP address, and via bookmarks), opens a temporary page that:
*
*
*

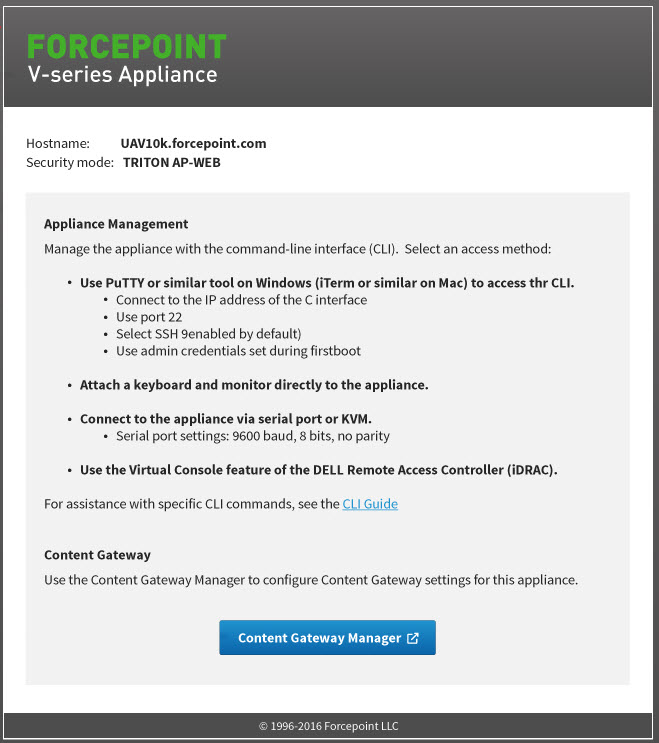

The page is similar to:
Accessing the Content Gateway manager
Content Gateway Manager hosted on any appliance or standalone server can be accessed in a browser by going to:
https://<C interface IP address>:8081
Changing the appliance management interface (C) IP address
If at all possible, do not change the appliance management interface (C) IP address of your appliance. What is affected and what must be done depends on the configuration of your appliance.
If your appliance hosts TRITON AP-EMAIL and you must change the C interface IP address, follow the procedure in the Changing the C Interface IP Address technical article.
If your appliance hosts TRITON AP-WEB, changing the C IP address requires a full reinstall (re-image) of the appliance. See the knowledge base article How to restore a V-Series or X-Series appliance to a v8.3.x factory image.

Warning
The set interface ipv4 command allows you to change the configuration of any available network interface, including the C interface IP address.
Rerun of firstboot
In version 8.3, it is no longer possible to rerun firstboot after it has successfully completed. However, every setting except the security mode, can be updated in the CLI.
To change the security mode (TRITON AP-EMAIL, TRITON AP-WEB, Web Filter & Security), the appliance must be re-imaged.
Content Gateway Manager 2-factor authentication
Content Gateway Manager 2-factor authentication is supported, however, when Content Gateway is on an appliance, you must contact Technical Support for assistance with disabling direct logon.
Forcepoint Security Appliance Manager

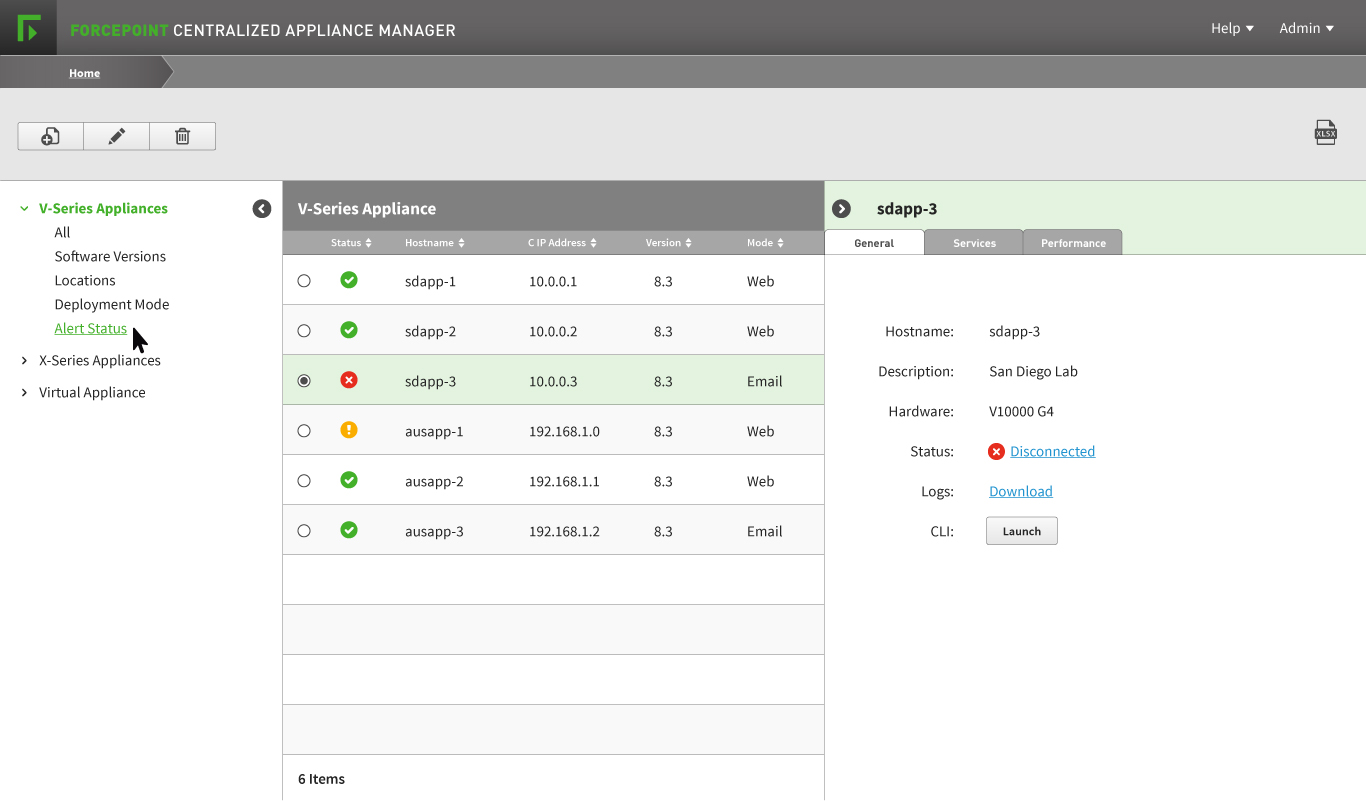

Coming in 2017 is a completely new, web-based GUI interface—the Forcepoint Security Appliance Manager. The Forcepoint Security Appliance Manager is a single, centralized management console for all models of TRITON appliances in your deployment. It will be located on the TRITON Management Server and integrate with TRITON Manager.

Important
Command-line interface (CLI)
In version 8.3, all appliances can be configured and maintained through a command-line interface (CLI). The CLI is familiar to X-Series users, for whom it has been the sole appliance management and configuration interface since v7.8.2. While V-Series users have for many releases had a CLI containing a subset of management and configuration commands, the v8.3 CLI is significantly expanded. It also uses a different structure and syntax. (V-Series administrators who prefer a GUI can look forward to the introduction of the Forcepoint Security Appliance Manager in 2017.)
Below is a small introduction to the CLI. For complete details, see the TRITON Appliances CLI Guide. See also, the V-Series: Visual Primer for CLI v8.3, and the CLI Command Comparison Table 8.2 to 8.3.
In this section:
*
*
*
*
*
*
Accessing the CLI
Depending on appliance model, there are several ways to connect to the appliance console and, hence, the CLI. Once connected, the console presents a logon prompt. Log on with the admin credentials.
All platforms: SSH
All appliance platforms can connect to the appliance console with SSH. You can enable SSH access via the CLI through one of the other access methods for your platform. Use the following command in config mode to enable SSH.
set access ssh --status on
To connect with SSH, on a Windows system use PuTTY, or similar. On a Mac system use Terminal.
Connect to the appliance management interface (C) IP address on port 22.
V-Series and X-Series
iDRAC
All X-Series appliances and most V-Series appliances supported with v8.3.0, have an integrated DELL Remote Access Controller (iDRAC).
Log on to the iDRAC and go to Overview > Server. In the upper right Virtual Console Preview area, click Launch.
VGA and USB
Connect a monitor and keyboard directly to the appliance.
Serial port
Configure a serial connection to a monitor and keyboard. The connection should be set to:
*
*
*
VMware virtual appliance
vSphere Client
Use the Console feature of the vSphere Client. In vSphere Client, select the virtual machine, open the Console, and click into the window to give it focus.
CLI modes
The CLI has 3 modes.
Command-line structure
The CLI syntax follows this format:
Command + Option + Parameter
Typically, verbs such as show, set, and save are used to view status or statistics, to change the configuration, and to initiate actions.
For example:
# set system clock --date <yyyy/mm/dd>
In this example:
*
set system is the command.
*
clock is the option.
*
--date is the parameter, which takes a value in the format yyyy/mm/dd.
Other conventions include:
*
--mask <ip_address>
--module <email|web|proxy>
*
[--description <description>]
*
<email|web|proxy>
Functional areas
The CLI commands may be grouped into these functional areas:
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
Embedded CLI help
Assistance is built into the CLI. There are 4 ways to get assistance.
1.
Use the help command to access help information at any level.
# help
# help show
# help show log
2.
Use the question mark character (?) to display help information for the current command path without pressing Enter and without losing the current input.
# ?
# show ?
# show system ?
3.
Use the Tab key to auto-complete command elements, or to display a list of available keywords or phrases to complete a command.
4.
New commands in v8.3
Several commands have been added to the CLI for version 8.3. For a comprehensive list of all CLI command changes between v8.2 and v8.3, see the CLI Command Comparison Guide 8.2 to 8.3.
TRITON appliance API
In the new TRITON Appliance architecture, all configuration, management, and troubleshooting functions are supported by a REST API that is used by all TRITON appliance platforms and Forcepoint solutions. The TRITON Appliance CLI uses the REST API, as does the Forcepoint Security Appliance Manager. In 2017, portions of the API will be published for customer use.
Changes for V-Series
Appliance Manager replaced with CLI and
Forcepoint Security Appliance Manager
See V-Series Appliance Manager.
Define a filestore
In version 8.2 and earlier, the V-Series Appliance Manager was used to move files to and from an appliance.
In v8.3, CLI commands are used to move files to and from an appliance, as well as when saving a file. Only system backup files can be saved locally, on the appliance. Therefore, a remote filestore location must be defined to facilitate working with files in the off-appliance location. You can define one or many filestores. The supported file transfer protocols include ftp, tftp, and samba.
A filestore is defined with the CLI command:
set filestore --alias <name> --type <ftp|samba|tftp>
--host <ip_address> [--port <port>]--path <share_directory>
[--user <user_name>]
The filestore definition includes:
*
*
*
*
*
Example:
set filestore --alias fstore --type samba
--host 10.123.48.70 --path appliance1_files --user jdoe
Displaying network interface status
In the v8.2 and earlier V-Series Appliance Manager, on the Status > General page some network interface status could be displayed by hovering the mouse pointer over an interface label, such a C or P1. To see similar information in the CLI, use the "show bandwidth" command. In diagnose mode, use the "ethtool --interface" command. [APA-2132]
Changes for X-Series
Appliance management network interface (C)
X-Series appliances add a C network interface dedicated to TRITON management communication. In versions 8.2 and prior, TRITON management traffic was handled on interface P1. Adding the C interface separates management traffic onto a dedicated channel, and makes X-Series platforms consistent with other TRITON appliance platforms.
Adding the C interface impacts X10G appliance upgrades to v8.3. Prior to applying the v8.3 upgrade patch, administrators must apply Hotfix830 and then configure the C interface in the CLI. The configuration data is stored until the upgrade is applied at which time the interface is added. For complete upgrade instructions, see the X-Series Upgrade Guide.
Web protection features
The following new web protection features are supported on TRITON appliances. See the v8.3.0 Release Notes for TRITON Web Protection Solutions for details.
Web Management API
Administrators can create scripts to import threat intelligence from third-party sources into TRITON AP-WEB. If you have linked your TRITON AP-EMAIL channel with TRITON AP-WEB, then both can benefit directly from this functionality.
See the section titled Management API (Appliance or Linux deployments) in the v8.3.0 Release Notes for TRITON Web Protection Solutions.
Content Gateway decryption port mirroring
Supported with TRITON AP-WEB on V10000 appliances.
When Content Gateway is enabled to decrypt HTTPS traffic for content analysis, the decrypted content can also be sent to a physical network interface to allow a trusted service to inspect the data for its own purposes. Note that the trusted device cannot modify the decrypted traffic and inject it back into the data steam.
The feature can be enabled and configured using CLI commands. (APA-950)
For more details, see the section titled SSL Decryption port mirroring (Content Gateway) in the v8.3.0 Release Notes for TRITON Web Protection Solutions.
Custom block pages
In version 8.3, customization of block pages hosted on appliances is facilitated with appliance API calls that download and upload your customized block page files. For comprehensive details, see the Creating Custom Block Pages technical paper.
Policy Broker replication
All TRITON appliances in TRITON AP-WEB deployments that configure Policy Broker replication automatically fail-over to a backup Policy Broker instance in the event that the primary Policy Broker becomes unavailable. No special configuration is needed.
Security updates
This release addresses the following Common Vulnerabilities and Exposures.
Closed vulnerabilities
*
*
CVE-2016-5195 – Dirty COW Security Vulnerability
*
CVE-2016-6304 – OCSP Status Request Extension Security
*
Notable CVEs to which v8.3.0 appliances are not vulnerable
*
*
*
CVE-2016-1950 – Buffer Overflow in Mozilla Network Security Services Vulnerability
*
CVE-2016-2118 and CVE-2016-0128 – Badlock Vulnerability
TRITON Appliances documentation
All TRITON appliances share common operating and maintenance procedures.
The TRITON Appliances documentation set includes:
*
*
*
*
*
*
*
*
*
*
*
*
*
