Navigating the Security Manager

Security Manager Help | Web, Data, and Email Protection Solutions | November 30, 2021

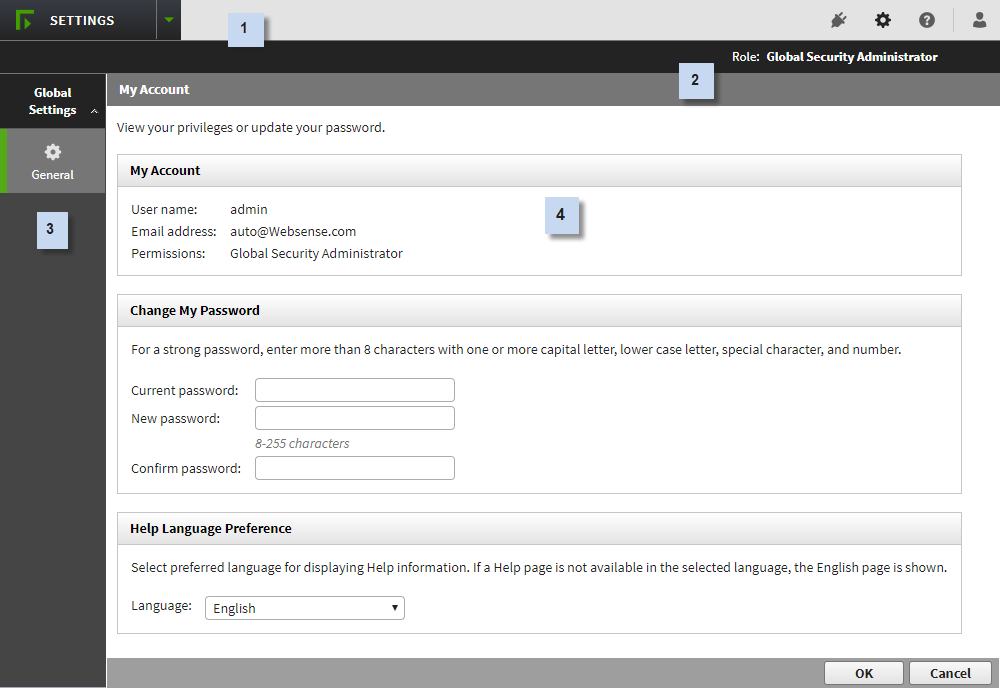

The Global Settings interface can be divided into four main areas. The following image displays the interface for Security Manager version 8.5.3 and later:

Security Manager toolbar

Module toolbar

Navigation pane

Content pane

The Security Manager toolbar shows:

The User Details drop-down list, which shows the current logged-on account and provides a Log Off button to end the administrative session

Icons used to configure appliances and global settings, and to open Help

Which module is active

Use the Module drop-down list in the Security Manager toolbar to switch between modules.

When administrators log on to the Security Manager, the module they last accessed is active indicated by a green icon in the Module drop-down list.

The module toolbar contains information and options relevant to the Security Manager module that is currently active. For the Global Settings or Appliances pages, it shows the current administrator account.

The navigation pane contains the available navigation choices for the current Security Manager module or configuration option.

The content pane varies according to the selection in the navigation pane.

For more information about specific modules, see:

Forcepoint DLP Administrator Help

Forcepoint Email Security Administrator Help

Forcepoint Web Security Administrator Help
