Create an SMTP send connector

1.	Select Start > All Programs > Microsoft Exchange Server 2010 > Exchange Management Console.

2.	Click the + sign to the left of your Exchange server.

3.	Click the + sign to the left of Organization Configuration.

4.	Click Hub Transport.

5.	Click the Send Connectors tab.

6.	In the Actions pane, click New Send Connector.

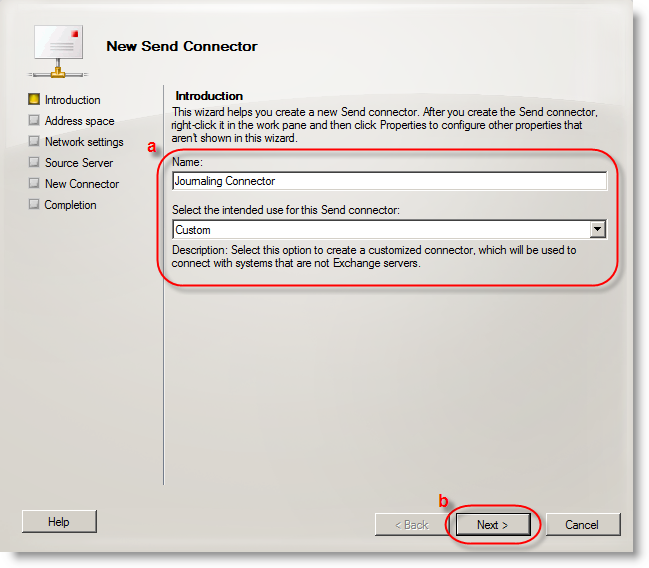

7.	Type Journaling Connector for the Name field, for the Select the intended use for this Send connector drop-down list, select Custom (a). Click Next (b).

8.	Click Add. The SMTP Address Space window opens.

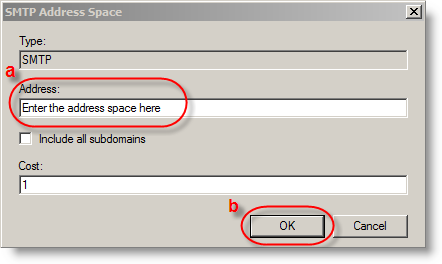

9.	In the Address field, type the Address Space (a). Leave the cost at 1 and then click OK (b).

10.	Click Next.

11.	Select the Route mail through the following smart hosts option and then click Add.

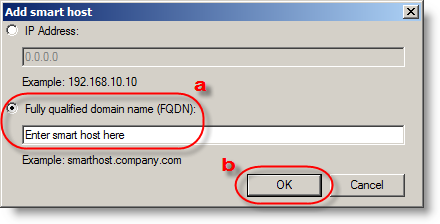

12.	Select the Fully qualified domain name (FQDN) option, type the smart host provided to you and then click OK.

13.	Click Next.

14.	Select None for the Configure smart host authentication settings and then click Next.



Note  Exchange 2010 servers automatically send all outbound email via TLS encryption: no outbound security configuration is required by the Administrator.

15.	Click Next.

16.	Click New.

17.	Click Finish.

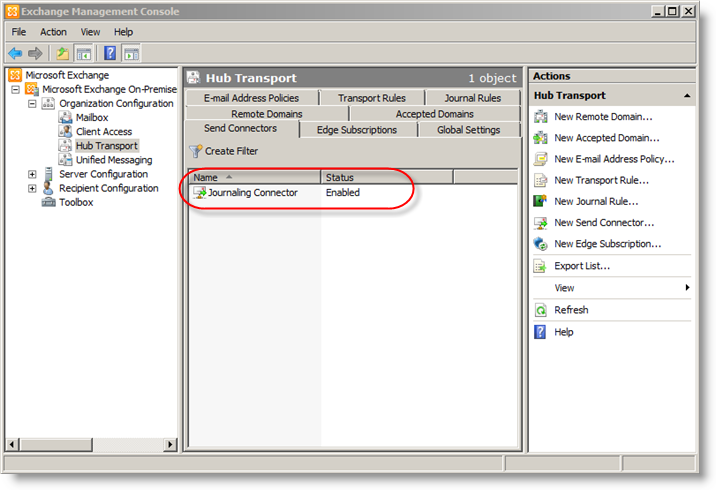

You have successfully created a send connector as shown below.
