1. Open the Exchange Management Console window by selecting Start -> All Programs -> Microsoft Exchange Server 2010 -> Exchange Management Console.
2. Select the + sign to the left of Organization Configuration.
3. Select Hub Transport.
4. Select the Send Connectors tab.
5. Your Send Connectors display in a list. To find the Send Connector associated with your journaling setup, follow these steps:
![]()

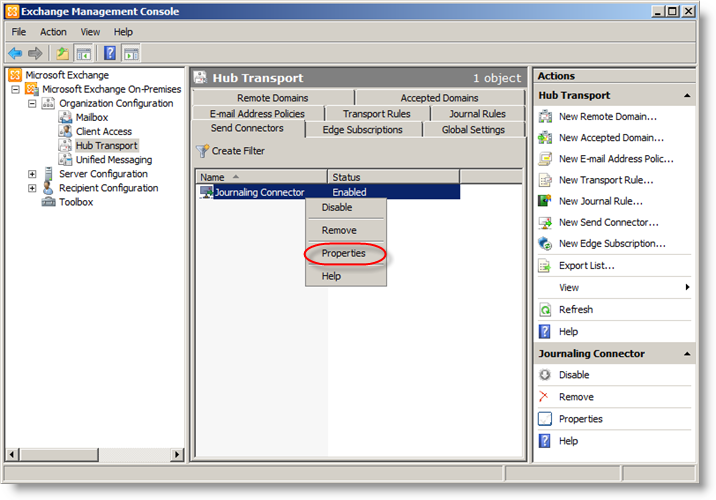

From the Send Connectors tab, right-click a Send Connector from within the list, and then select Properties.
![]()
Select the Address Space tab, within the Journaling Connector Properties dialog box. If the address listed (a) matches the Address Space used during the journaling setup, then this Send Connector must be deleted. Click Cancel (b) to close the dialog box.
If the address listed does not match the Address Space used during the journaling setup, repeat the above steps.
6. Select the Send Connector that needs to be deleted, from within the Send Connectors list (a), and select Remove in the right-hand Actions pane (b).
7. Select Yes on the resulting warning dialog box.
![]() |
![]() |
![]() |
![]() |
![]() |
