Exchange 2010 Journaling Guide > Troubleshooting tips

*
Make sure the Journaling Contact SMTP Email Address (journal address provided to you) is spelled correctly
*
Click Start and then click Run.
*

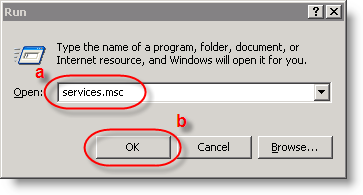

Type services.msc in the text box (a) and click OK (b).
*

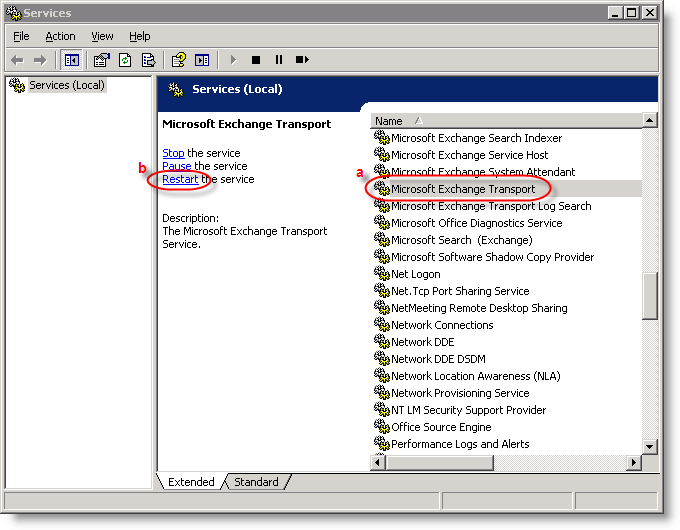

Locate and click the Microsoft Exchange Transport service (a) and click Restart (b).
*
A dialog displays with the following message: "Microsoft Exchange Transport service is being restarted." When the dialog closes, you have successfully restarted the service.
*
Many firewalls can block email messages sent using TLS encryption, even if they are set to allow all outbound email messages.
*
If you have a Cisco firewall, chances are very high that the ESMTP packet inspection is enabled and blocking the TLS-encrypted email messages. For more information, visit Cisco support by clicking on the link below or copying and pasting it into your web browser. http://www.cisco.com/en/US/docs/security/asa/asa72/release/notes/asarn723.html#wp219670
*
Verify there are no enabled Send Connectors utilizing the domain name of the contact being journaled to. Get-SendConnector | Where {$_.AddressSpaces –match "domain.com" If you get a match on one, then there is a send connector handling that domains email.
*

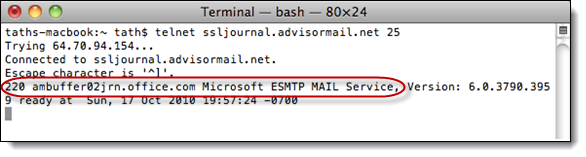

Issue telnet to smarthost (i.e. telnet ssljournal.advisormail.net 25) this should return a 220 banner, seen in the figure below.
