Locating Network Agent in a single-segment network
Deployment and Installation Center | Web Protection Solutions

Applies to:
*
Forcepoint Web Security, v8.5.x
*
Forcepoint URL Filtering, v8.5.x
A single segment network is a series of logically connected nodes (computers, printers, and so on) operating in the same portion of the network. In a single segment network, Filtering Service and Network Agent must be positioned to monitor Internet traffic across the entire network.

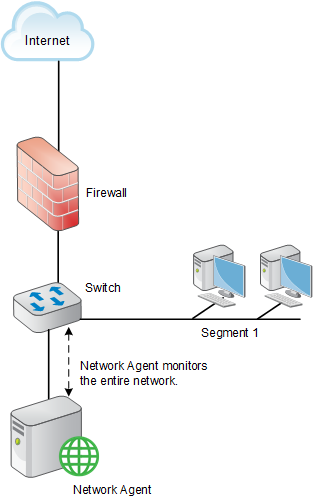

The following illustration shows Network Agent in a standalone Forcepoint URL Filtering deployment, installed in a central location to see both HTTP and non-HTTP traffic.
