Deployment and Installation Center
Websense TRITON Enterprise v7.6.x


If you have both Web and data security solutions, packages are customized according to your needs and created using the Websense Endpoint Package Builder. The package builder can create 32- and 64-bit Windows packages for all 3 types of Websense endpoints, as well as Linux packages for Data Endpoint.
The package builder can be found in the directory where you install Websense Data Security: C:\Program Files\Websense\Data Security\client\WebsenseEndpointPackageBuilder.exe by default.
*
You can download the Web Endpoint package by logging onto TRITON - Web Security and navigating to the Settings > Hybrid Configuration > Hybrid User Identification page.
*
You can install the Remote Filtering Client Pack by running the TRITON Unified Installer and selecting the Custom installation option for Web Security.
Note
If you have existing versions of Data Endpoint or Remote Filtering Client, uninstall them before deploying the new installation packages.
1.
Go to Start > Programs > Websense > Data Security > Endpoint Package Builder.
2.
Click Next, and then accept the terms of the subscription agreement.
Select one or more endpoint solutions to install. You can create packages for both Websense Data Endpoint and one Web filtering solution, but cannot select both Web filtering solutions.
b.
For security purposes, anyone who tries to modify or uninstall endpoint software is prompted for a password. Enter a password that administrators can use for this purpose.
For Data Endpoint, once the endpoint client contacts the endpoint server, this password is overwritten with the password specified by a TRITON administrator. Administrators can set this password on the General tab under Settings > General > System > Endpoint.
Click Show characters to display the password characters while you type.
c.
Sometimes when users cannot modify or uninstall the endpoint software, they try to delete the directory where the software is installed.
Click Protect installation directory from modification or deletion if you do not want users to be able to perform these functions.
d.
Click Next when you're done.

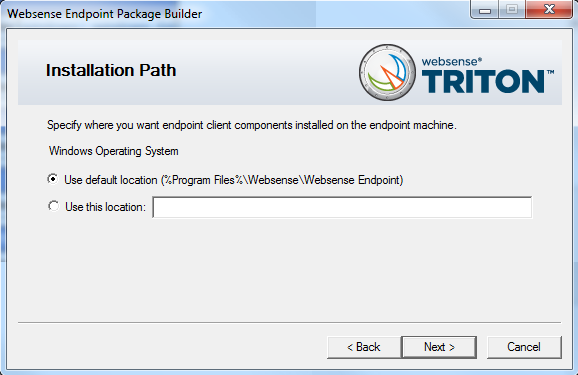

Specify the directory where you want endpoint software installed on each endpoint device. The endpoint software must be installed in a directory path that contains only English characters.
*
Use default location: The endpoint software is installed in a default directory: \Program Files\Websense\Websense Endpoint (Windows) or /opt/websense/LinuxEndpoint (Linux).
*
Use this location: Manually specify the installation path for the endpoint software. Environment variables are supported.
6.
Click Next. The screens that appear next depend on the endpoint clients you chose. See:

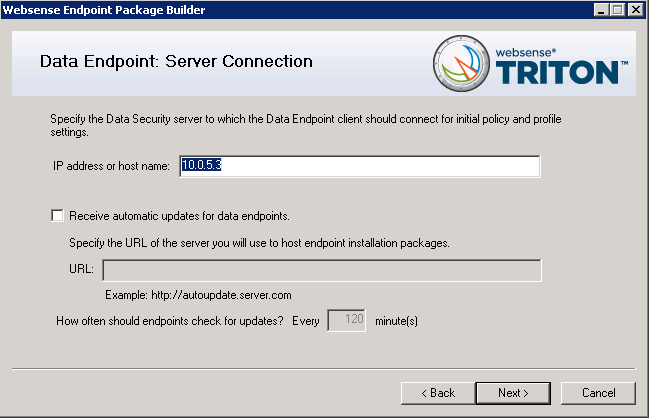

IP address or host name: Provide the IP address or host name of the Data Security server that endpoint machines should use to retrieve initial profile and policy information. (Once configured, endpoints retrieve policy and profile updates from the endpoint server defined in their profiles.)
Receive automatic updates for data endpoints: When new versions of Data Endpoint are released, you may upgrade the software on each endpoint—this can be done via GPO or SMS—or you can configure automatic updates on this screen.
a.
Prepare a server with the latest updates on it (see "Automatic Updates for Websense data endpoints" for details).
b.
Select Receive automatic updates for data endpoints.
2.

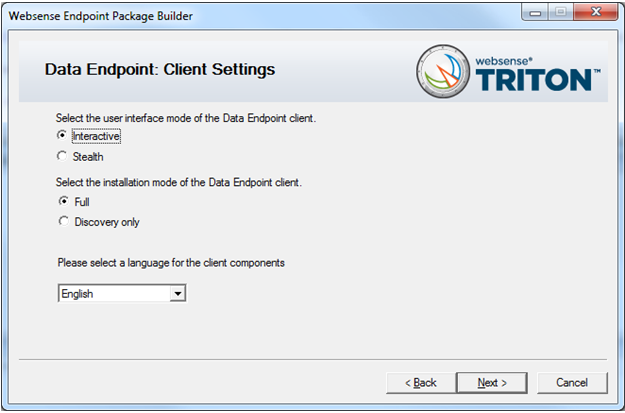

Click Next and the Client Settings screen appears:
*
Interactive: A user interface is displayed on all endpoint machines. Users know when files have been contained and have the option to save them to an authorized location.
*
Stealth: The Websense Data Endpoint user interface is not displayed to the user.
*
Full: Installs the endpoint with full policy monitoring and blocking capabilities upon a policy breach. All incidents are reported in the TRITON Console.
Endpoints that are installed in Full Mode require a reboot.
*
Discovery Only: Configures the endpoint to run discovery analysis but not DLP. Discovery Only installation does not require a reboot.
Select the default local language for the client user interface and the messages that are displayed to the user.
Note: The language used for displaying messages (English, Russian and German) can be changed via TRITON - Data Security, but the language displayed in the user interface (buttons, captions, fields, etc.) can only be set during packaging.
3.
Click Next. If you chose no other endpoints, skip to Global settings for instructions. Otherwise, move to Websense Web Endpoint or Remote Filtering Client.
Specify the URL for the proxy PAC file. This file defines how Web browsers chooses an appropriate proxy for fetching a given URL. The standard proxy PAC file URL for hybrid filtering is:
2.
http://hybrid-web.global.blackspider.com:8082/proxy.pacClick Next, and the Save Installation Package screen appears. See Global settings for instructions on configuring this screen.

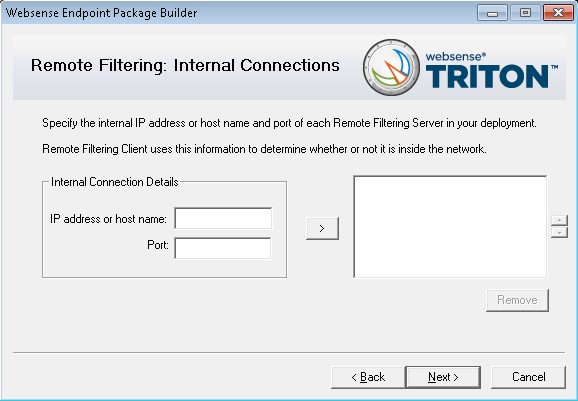

IP address or host name: Internal IP address or FQDN for the primary Remote Filtering Server machine.
Port: Internal communication port on the primary Remote Filtering Server that can be accessed only from inside the network firewall. This must be the same port entered in the Internal Communication Port field when this Remote Filtering Server was installed.
Note
If Remote Filtering Client is on a laptop that is used both inside and outside the network firewall, this allows Websense software to determine where the machine is located and filters it appropriately.
2.

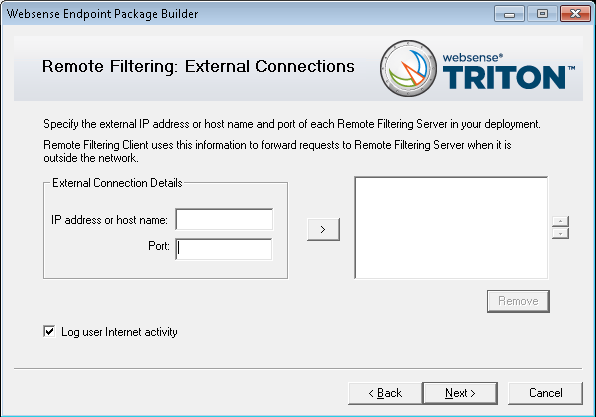

Click Next and the External Connections screen appears:
IP address or host name: Externally visible IP address or fully qualified domain name (FQDN) of the primary Remote Filtering Server machine.
Important
You must use the same address format (either IP address or FQDN) as when you installed this Remote Filtering Server.
Port: Externally accessible port used to communicate with the primary Remote Filtering Server. This must match the external port number entered when installing the primary Remote Filtering Server.
3.

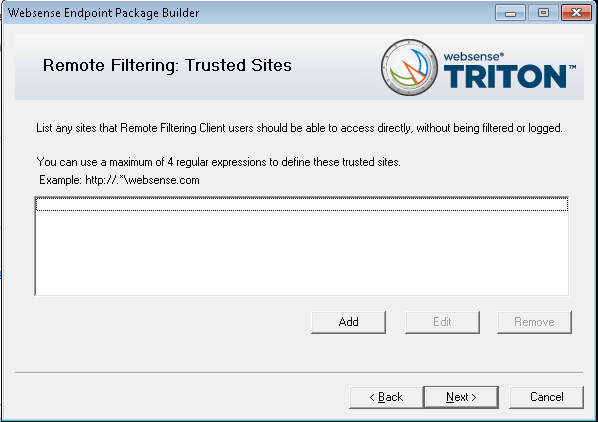

Click Next and the Trusted Sites screen appears:
a.
Click Add.
b.
In the dialog box that appears, enter a URL or a regular expression specifying a set of URLs. Any regular expression adhering to ISO/IEC TR 19768 (within the character-number limit) is valid.
c.
4.

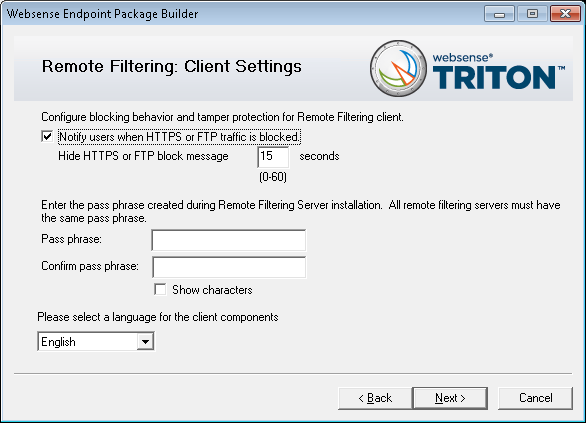

Click Next and the Client Settings screen appears:
Notify users when HTTPS or FTP traffic is blocked
For HTTP traffic, custom block pages are shown inside users' browser windows when traffic is blocked.
Select this option if you want users to receive a pop-up message for blocked HTTPS or FTP traffic. If you enable this option, specify the time the pop-up message should remain visible to the user.
The pass phrase you enter must be the same one used when you installed the Remote Filtering Server. This pass phrase is used to connect the Remote Filtering Client with the server.
Select the default local language for the client user interface and the messages that are displayed to the user.
5.
Click Next, and the Save Installation Package screen appears. See Global settings for instructions on configuring this screen.

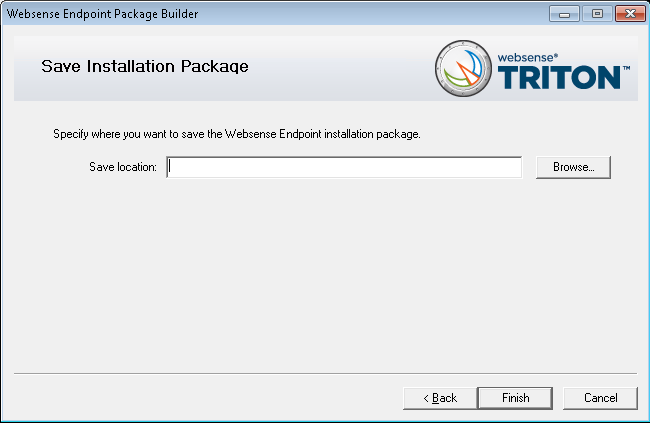

In the Save location field, provide the directory path where you want the endpoint packages to be stored before they are deployed to client machines. Either manually enter a path or click Browse to find the location.
2.
Click Finish.
You'll see a system message if the package is created successfully. If the creation of the package fails, you'll see an error message. If this happens, contact Websense Technical Support for assistance.
3.
Once the packaging tool has finished, the packages are created in the designated path. Refer to Deployment options for instructions on distributing the package to the endpoint devices.
Important
1.
Manually on each endpoint machine. Windows packages contain a single executable file: WebesenseEndpoint_32bit.exe or WebesenseEndpoint_64bit.exe. This file is a self-extracting archive.
*
LinuxEndpoint_SFX_installer_el4 - should be used with Red Hat Enterprise Linux version 4.x.
*
LinuxEndpoint_SFX_installer_el5 - should be used with Red Hat Enterprise Linux version 5.x.
To install Data Endpoint software on a Linux computer, copy the correct installer to the machine and run it as root. No reboot is necessary. The endpoint software starts automatically.
2.
Using System Center Configuration Manager (SCCM) or Systems Management Server (SMS) for Windows environments that use these Microsoft tools to manage the computers in their networks. See "Creating and distributing Websense endpoints using SCCM or SMS" for details.
3.
Automatically (applies to updates only).
To deploy Data Endpoint updates automatically, you must create an update server that hosts endpoint installation packages. See "Automatic Updates for Websense data endpoints" for details.
You must also select Receive automatic updates for data endpoints on the Websense Endpoint Package Builder "Server Connections" screen. On this same screen, specify the URL of the server you created and indicate how often you want endpoint machines to check for updates (every 2 hours by default).
When configured properly, your update server pushes software updates out to endpoint machines and installs the packages in the background silently.
Note
If you want to change the components installed on a data endpoint with components of the same version (for example, switch from a data and web endpoint combination to a data only endpoint), you must use the package builder to generate a new package and use one of the other deployment options to deploy it. You cannot use the auto-update feature to update endpoints with the same version.
*
For Web Endpoint, go to Start > Control Panel > Administrative Tools > Services. Check that Websense SaaS Service is present in the Services list, and is started.
*
When the Data Endpoint is installed in interactive mode, an icon () appears on the endpoint machine's task bar. Click the icon for status information. (No icon shows in stealth mode.)
Once you have deployed your endpoint package to end users, Web Endpoint can be updated for some or all of your hybrid filtering users directly from the hybrid service. If you use the Data Endpoint auto-update feature for endpoints with both data and Web capabilities, however, endpoints receive updates from your auto-update server instead.
1.
Go to the Settings > Hybrid Configuration > Hybrid User Identification page in TRITON - Web Security.
2.
Mark Enable installation and update of Web Endpoint on client machines.
This defines whether automatic updates are deployed to the client machines that you specify. If you uncheck this option at a later date, no further automatic updates occur. However, the installed endpoint software continues to run until it is uninstalled from the client machines.
3.
Mark Automatically update endpoint installations when a new version is released.
4.
Click OK to cache your changes. Changes are not implemented until you click Save All.
Note
At the completion of an endpoint update, you must restart the endpoint for the updates to take effect.
Note that while a Web Endpoint update is taking place (which can take several minutes), end users are unable to browse, but are shown a Web page explaining that the update is occurring. This page continues to retry the requested Web page every 10 seconds until the endpoint software has finished updating. The request is then submitted, and either the page or a block page is displayed.
