Transparent Proxy and ARM > Transparent interception strategies > Transparent interception with policy-based routing
Transparent interception with policy-based routing
Help | Content Gateway | Version 8.2.x
Instead of the WCCP protocol, you can use the policy routing capabilities of a router to send traffic to Content Gateway. WCCP or a Layer 4 switch are generally preferable to this configuration because policy-based routing has a performance impact on the router, and policy-based routing does not support load balancing or heartbeat messaging.
*

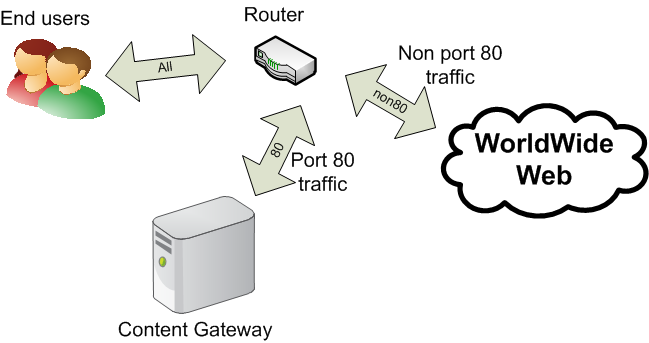

All client Internet traffic is sent to a router that feeds Content Gateway.
*
The router sends port 80 (HTTP) traffic to the proxy and sends the remaining traffic to the next hop router.
*
The ARM translates intercepted requests into Content Gateway requests.
*
Translated requests are sent to the proxy.
*
Web objects to be served transparently are readdressed by the ARM on the return path to the client, so that the documents appear to have come from the origin server.
A Content Gateway cluster with virtual IP failover adds reliability; if one node fails, another node can take up its transparency requests. See Virtual IP failover.
