Lesson 1: Using the management console

New Admin Quick Start | TRITON AP-WEB and Web Filter & Security | v8.2.x


Discover how to use the TRITON Manager to perform configuration, policy management, and reporting tasks for your web protection solution.

The TRITON Manager (console) is the interface to the configuration, administration, and reporting functions of your TRITON solutions. An administrator can be granted access to one or more TRITON console modules (Web, Data, and Email), and be given specific permissions within each module.

The default administrative account for the TRITON console is admin. The initial password for this account is set during installation. The admin account has full access to all TRITON modules. In the Web module, full access is equivalent to unconditional Super Administrator permissions.

If you are logged on as a delegated administrator with more limited permissions, some features (indicated below) may not be visible.

The Web module of the TRITON Manager is divided into 4 main areas:

Across the top of the screen:

The TRITON banner shows information about your logon session.

The TRITON toolbar makes it easy to switch between modules, access TRITON settings, launch the Appliance manager for any registered appliances, and get Help.

The Web module toolbar lets you switch between Policy Servers, change administrative roles, and review and save changes.

The left navigation pane is used to access status, reporting, and policy management features (Main tab), as well as system administration tasks (Settings tab).

The right shortcut pane is used to find articles, videos, worksheets, and other support information, and to access tools for verifying your configuration.

The content pane appears in the center of the TRITON console. The selections that you make in the left navigation pane or right shortcut pane determine what appears in the content pane.

Section 1: The banner, TRITON toolbar, and Web module toolbar:

The features that you see when you log on to the Web module of the TRITON Manager are dependent on your administrative role. The banner displays the user name for the account used to log on. If your organization does not use delegated administration, the account name is always admin, and has full access to all TRITON Manager functions.

The banner also includes a Log Off button, for when you're ready to end the session.

Just below the banner, the TRITON toolbar contains a tab for each TRITON console module. The current module is highlighted in yellow, and other available modules are shown in blue. Unavailable modules appear in gray. The TRITON toolbar also includes the following buttons:

Appliances, used to launch the Appliance manager for any V-Series appliances associated with the current Policy Server.

TRITON Settings, used to perform configuration tasks that affect all of the installed TRITON modules, like creating administrator accounts.

Help, used to access context-sensitive instructions and troubleshooting materials, tutorials, and online Support tools. More information is available in Lesson 2: Accessing Help.

Under the module tray, the Web module toolbar provides information and access to features that apply to all pages in the Web module of the TRITON Manager:

The current Policy Server IP address.

When you open the Web module of the TRITON Manager, you connect to a component called Policy Server. By connecting to a specific Policy Server, you determine which segment of your deployment to manage.

Your current delegated administration Role.

When delegated administration roles are defined, administrators who manage multiple roles can use this list to change between roles. Super Administrators can use the list to switch to any role that has been defined.

A View Pending Changes button that is enabled when changes have been cached, but not changed.

Use this button to review a summary of cached changes before saving them, or to discard all pending changes.

A Save and Deploy button, whose color indicates whether there are cached changes waiting to be saved

Each time you perform a task, and then click OK, your changes are cached. You must click Save and Deploy to save and implement the changes.

Section 2: The left navigation pane:

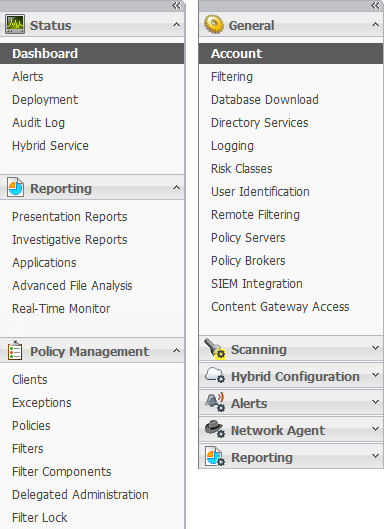

The left navigation pane has 2 tabs: Main (shown on the left in the image below) and Settings (on the right).

The Main tab provides access to system status information, reporting functions, and policy configuration and management tools. It is available to all administrative users, but some navigation links are hidden for conditional Super Administrators and delegated administrators.

The Settings tab provides access to account management functions, as well as global and local system administration tasks. It is hidden from some administrators, and shows different options based on the current administrator's permissions.

To minimize the left navigation pane, expanding the amount of space available for the content pane, click the double left arrow icon (<<) above the Status group. When the left navigation pane is minimized, it displays a small icon for each section of the current tab. Hover the mouse over an icon to display a menu of features in that group.

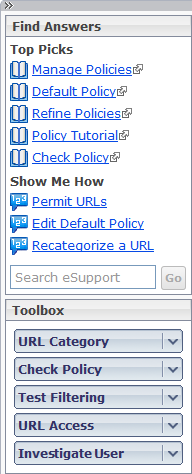

Section 3: The right shortcut pane:

The default admin account and unconditional Super Administrators can use all of the tools in the right shortcut pane. For other administrators, some options may be hidden.

Find Answers provides links to relevant information to help you complete your management tasks.

Top Picks provides links to articles, papers, worksheets, videos, and webinars.

Show Me How offers interactive tutorials that walk you through the process of completing common tasks (like creating a permitted exception) or complex procedures (like configuring Network Agent).

Search lets you locate additional articles, forum posts, videos, and other content on the eSupport website.

The Toolbox contains quick lookup tools that you can use to verify your configuration.

Click URL Category to quickly determine how a URL is categorized.

Click Check Policy to find out which policy is currently being applied to a user.

Click Test Filtering to see how a specific URL is currently being handled (permitted, blocked, etc.) for a user.

Click URL Access to create an investigative report showing whether a site has been accessed from your network within the past 14 days.

Click Investigate User to create an investigative report showing which sites a user has visited in the past 14 days.

Section 4: The content pane:

The content pane appears in the middle of the TRITON console. When you connect to the Web module, the Threats dashboard appears in the content pane, showing information about advanced malware threat activity detected in your network.

When you click a link in the left navigation pane or the right shortcut pane, the content pane changes to display options appropriate to your selection.

Most of the remaining lessons in this quick start tutorial demonstrate how to use options in the content pane.

Continue with Lesson 2: Accessing Help.
