Install Network Agent where can it see all Internet requests (HTTP and non-HTTP) from the machines it is assigned to monitor. This monitoring must be done inside the firewall.
The size and configuration of the network, the hardware capabilities of each Network Agent machine, and the volume and type of network traffic all play a role in determining how many Network Agent instances are needed. Some sites can use one Network Agent machine for every thousand users; others use one Network Agent machine for several thousand users. Websense Technical Support and Sales Engineering can assist with deployment decisions.
If your network includes a router or Network Address Translation (NAT) device, position Network Agent to see the original (not the translated) IP addresses for all monitored machines.

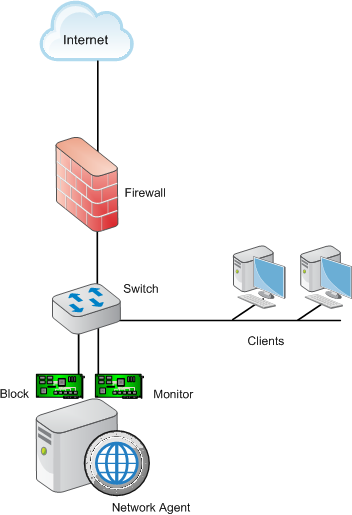

Network Agent requires at least one network card (NIC) to monitor and block traffic, and can be configured to use multiple NICs. Each NIC that Network Agent uses for monitoring must be able to see all inbound and outbound traffic for the network or segment that it is configured to monitor.
If both the blocking and monitoring NIC on a Linux machine are assigned to the same subnet, the Linux operating system may attempt to send the block via the monitoring NIC. If this happens, the requested page or protocol is not blocked, and the user is able to access the site.

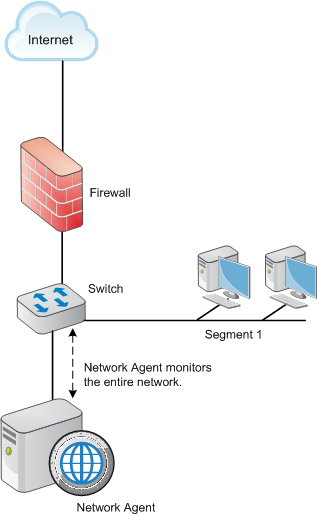

If the Network Agent machine connects to a switch, the switch must support port spanning (mirroring). This means that a copy of all network traffic seen on the switch is sent to the span or mirror port for monitoring.
Some switches do not allow bidirectional traffic in spanning (mirroring) mode. The network card receiving data on the Network Agent machine can only listen, not send. In this case:
Network Agent must see the traffic, in both directions, for those segments of the network that it is assigned to monitor. The port to which the Network Agent machine is attached must be capable of bidirectional port spanning (mirroring).
In small to medium-sized Microsoft Windows environments, Network Agent can be installed on the gateway machine. This allows Network Agent to manage and monitor all Internet traffic. The gateway can either be a proxy server or a network appliance. Do not install Network Agent on a firewall.
