Create an SMTP send connector

1.	Open the Exchange Management Console window by selecting Start > All Programs > Microsoft Exchange Server 2007 > Exchange Management Console.

2.	Click the + sign to the left of Organization Configuration.

3.	Click Hub Transport.

4.	Click the Send Connectors tab.

5.	In the Actions pane, click New Send Connector.

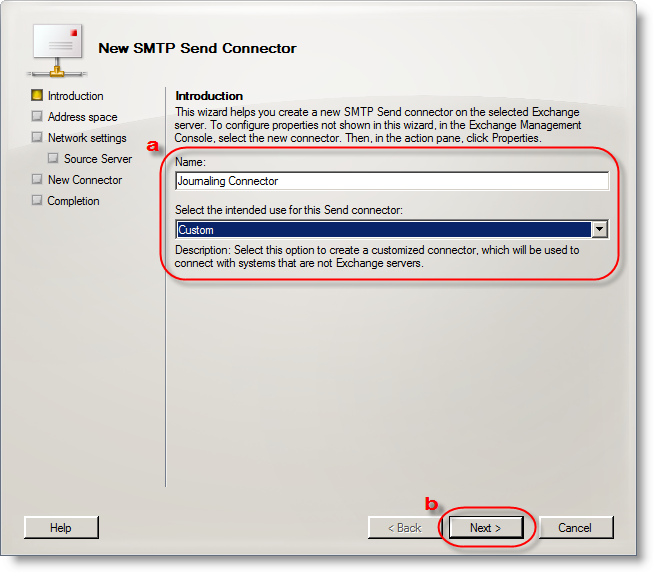

6.	Type Journaling Connector for the Name and for the Select the intended use for this Send connector drop-down list, select Custom (a). Click Next (b).

7.	Click Add.

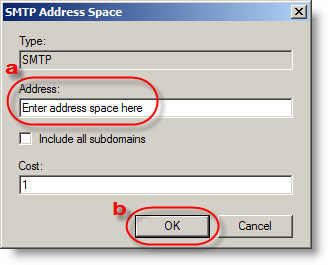

8.	In the SMTP Address Space window, type the Address Space provided to you in the Address field (a). Leave the cost at 1 and then click OK (b).

9.	Click Next.

10.	Select the Route mail through the following smart hosts option and then click Add.

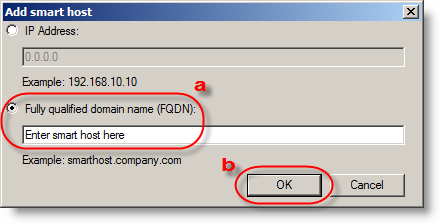

11.	Click the Fully qualified domain name (FQDN) option (a), type the Smart Host provided to you and click OK (b).

12.	Click Next.

13.	Select None for the Configure smart host authentication settings option, and then click Next.

14.	Click Next.



Note  Exchange 2007 servers automatically send all outbound email via TLS encryption: no outbound security configuration is required by the Administrator.

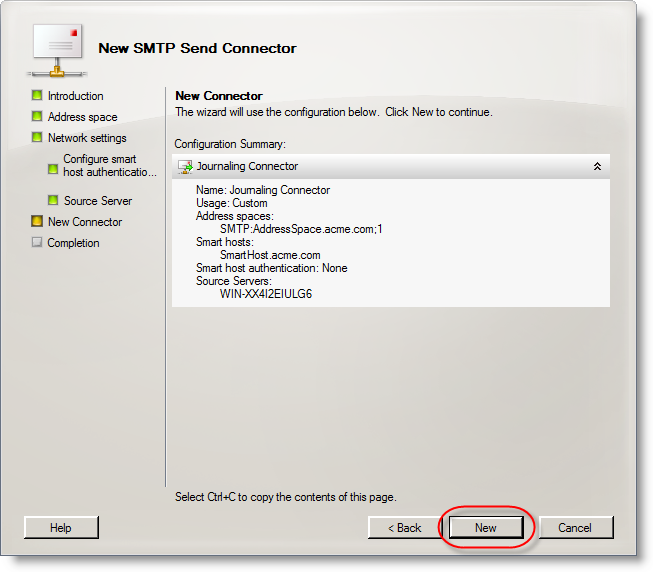

15.	Click New.

16.	Click Finish.

You have successfully created a send connector as shown below.
