Exchange Journaling Guide
Email Security v7.3, Email Security Gateway v7.6, Hosted Email Security


*
Click Start and then click Run.
*

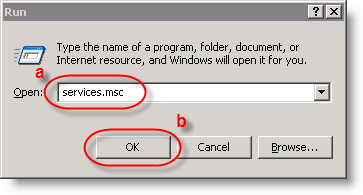

Type services.msc in the text box (a) and then click OK (b).
*

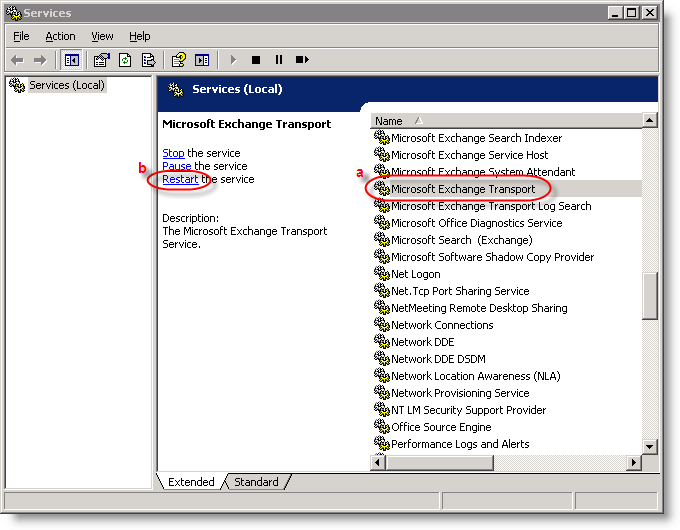

Locate and click the Microsoft Exchange Transport service (a) and then click Restart (b).
A pop-up window will display with the message "Microsoft Exchange Transport service is being restarted." When the pop-up window automatically disappears, you have successfully restarted the service.
*
Many firewalls can block email messages sent using TLS encryption, even if they are set to allow all outbound email messages.
*
If you have a Cisco firewall, chances are very high that the ESMTP packet inspection is enabled and blocking the TLS-encrypted email messages. For more information, visit Cisco support by clicking on the link below or copying and pasting it into your web browser. http://www.cisco.com/en/US/docs/security/asa/asa72/release/notes/asarn723.html#wp219670.
*
Verify there are no enabled Send Connectors utilizing the domain name of the contact being journaled to. Get-SendConnector | Where {$_.AddressSpaces –match "domain.com" If you get a match on one, then there is a send connector handling that domains email.
*

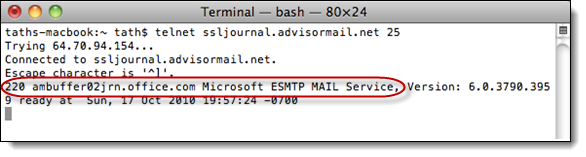

Issue telnet to smarthost (i.e. telnet ssljournal.advisormail.net 25) this should return a 220 banner, seen in the figure below.
*
Add domain.com (shown on address space of send connector) to the remote domain tab under Organization Configuration > Hub Transport.
*
Click on the Format of original message sent as attachment to journal report tab.
*
On Exchange rich-text format select the Never use option.
