High-level deployment diagrams
Deployment and Installation Center | TRITON AP-WEB and Web Filter & Security | v8.0.x
In this topic
*
Web Filter & Security deployment diagram
*
TRITON AP-WEB deployment diagram
Web Filter & Security deployment diagram

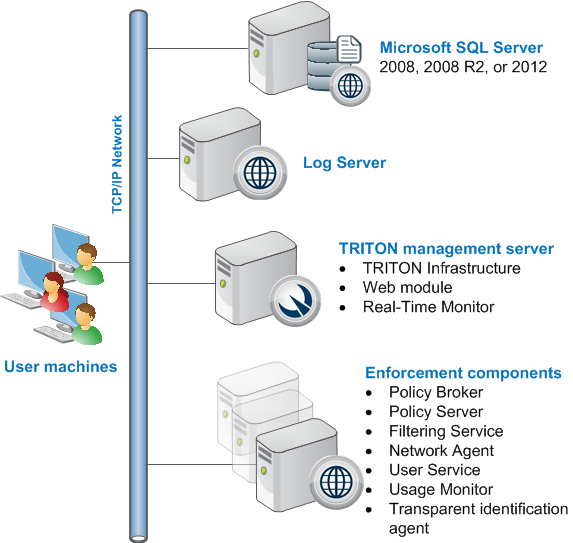

The illustration below shows components distributed across multiple servers in a typical deployment.
All of the enforcement components, except for the optional transparent identification agents, may reside on a Windows or Linux server, or a Websense appliance.
For evaluation or very small (low traffic) deployments, all Websense components, plus an instance of SQL Server 2008 R2 Express (installed by the TRITON Unified Installer) may reside on a single Windows server.
For more information about the core components that make up a deployment, see Deploying core web protection components.
TRITON AP-WEB deployment diagram

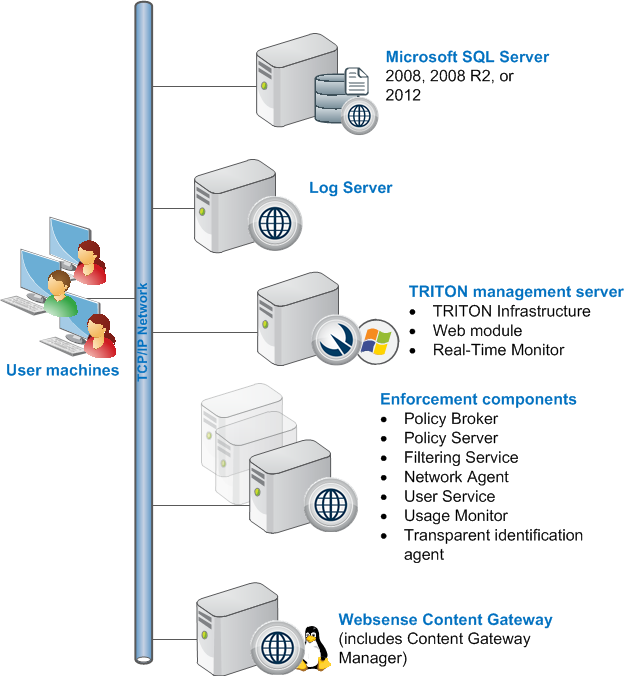

This illustration shows a basic software-based deployment. Note that the illustration is intended to show the general distribution of components and does not include network details (such as segmenting, internal firewalls, routing, switching, and so forth).
Content Gateway and other enforcement components, except for the optional transparent identification agents, may also reside on a Websense appliance.
For more information about the core components that make up a deployment, see:
*
Deploying core web protection components
*
Content Gateway Deployment
If you have purchased the Web Hybrid module, also see:
*
Deploying Web Hybrid module components
