Network Agent on a gateway
Deployment and Installation Center | TRITON AP-WEB and Web Filter & Security | v8.0.x
A gateway provides a connection between two networks. The networks do not need to use the same network communication protocol. The gateway can also connect a network to the Internet.
Network Agent can be installed on the gateway machine, allowing Network Agent to manage and monitor all Internet traffic. The gateway can either be a third-party proxy server or a network appliance.
Do not install Network Agent on a firewall. Also, if your network includes a software installation of Content Gateway, do not install Network Agent on the Content Gateway machine. (Content Gateway and Network Agent can reside on the same V-Series appliance.)

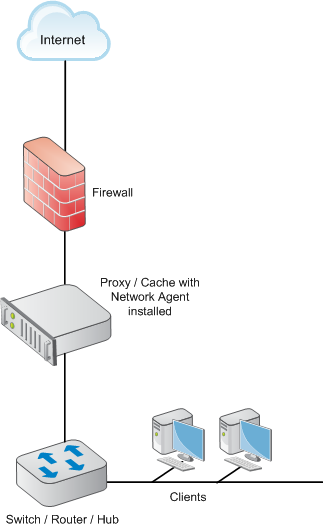

The following illustration shows Network Agent monitoring the Internet traffic at the proxy gateway or caching appliance directly attached to the firewall.

*
Important
The gateway configuration shown here is best used in small to medium networks.
In larger networks, performance can suffer as a result of resource competition between the gateway software and Network Agent.
