Web Security Deployment Recommendations > Deploying Remote Filtering Server and Client
Deploying Remote Filtering Server and Client
Deployment and Installation Center | Web Security Solutions | Version 7.8.x
With all Web Security solutions, you have the option to use remote filtering software to manage Internet activity for machines that reside or travel outside your network.
*
Remote Filtering Client is installed on each remote machine.
*
The client software communicates with Remote Filtering Server, which acts as a proxy to Websense Filtering Service.
Communication between the components is authenticated and encrypted.

*
Note
If you have Websense Web Security Gateway Anywhere, you can also use the hybrid service to monitor users outside your network.
When you install remote filtering components:
*
Install Remote Filtering Server on a dedicated machine that can communicate with the Filtering Service machine.
As a best practice, install Remote Filtering Server in the DMZ outside the firewall protecting the rest of the corporate network. This is strongly recommended.
*
Do not install Remote Filtering Server on the same machine as Filtering Service or Network Agent.
*
Each Filtering Service instance can have only one primary Remote Filtering Server.
Remote Filtering Client system recommendations:
*
Pentium 4 or greater
*
Free disk space: 25 MB for installation; 15 MB to run the application
*
512 MB RAM
Network Size
Hardware Recommendations
1-500 clients
Windows or Linux
*
Quad-Core Intel Xeon 5420 or better processor, 2.5 GHz or greater
*
2 GB RAM
*
20 GB free disk space
500+ clients
Windows or Linux
*
Quad-Core Intel Xeon 5450 or better processor, 3.2 GHz or greater
*
4 GB RAM
*
20 GB free disk space

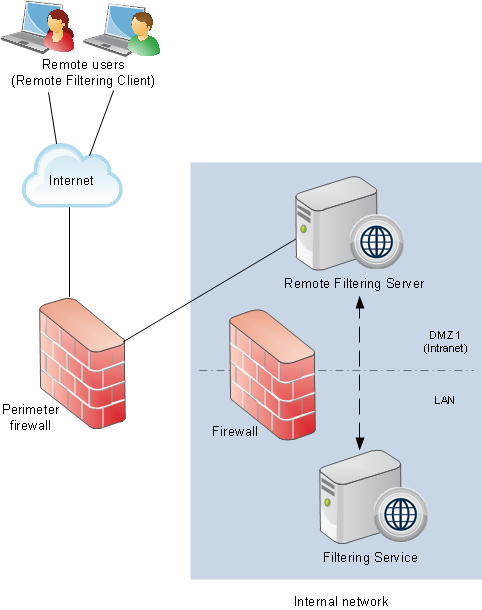

The following illustration provides an example of a Remote Filtering deployment. The illustration does not include all Websense components. For more information, see the Websense Remote Filtering Software technical paper.
