High-level deployment diagrams
Deployment and Installation Center | Web Security Solutions | Version 7.8.x
Applies to:
In this topic
*
Web Filter, Web Security, Web Security Gateway, and Web Security Gateway Anywhere, v7.8.x
*
Web Filter and Web Security deployment diagram
*
Web Security Gateway deployment diagram
*
Web Security Gateway Anywhere deployment diagram
Web Filter and Web Security deployment diagram

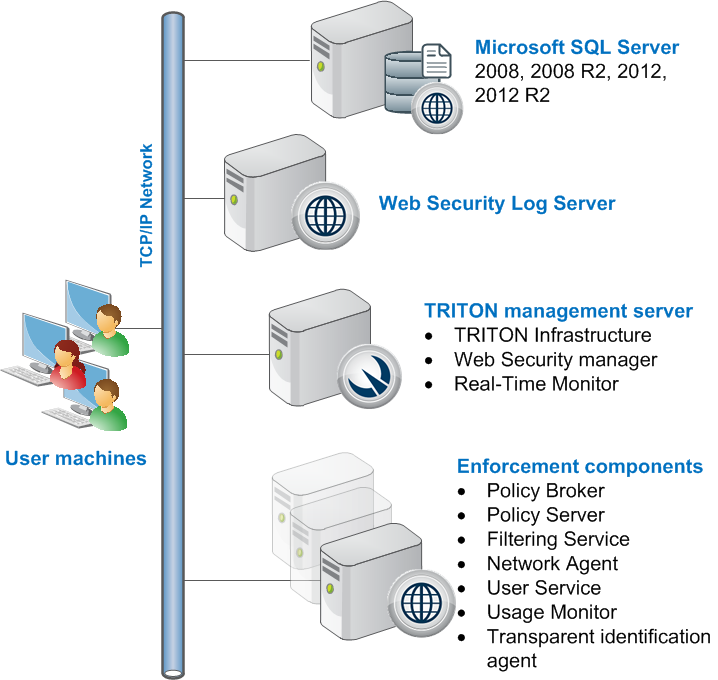

The illustration below shows components distributed across multiple servers in a typical deployment.
All of the enforcement components, except for the optional transparent identification agents, may reside on a Windows or Linux server, or a Websense appliance.
For evaluation or very small (low traffic) deployments, all Websense components, plus an instance of SQL Server 2008 R2 Express (installed by the TRITON Unified Installer) may reside on a single Windows server.
For more information about the core components that make up a deployment, see Deploying Web Security core components.
Web Security Gateway deployment diagram

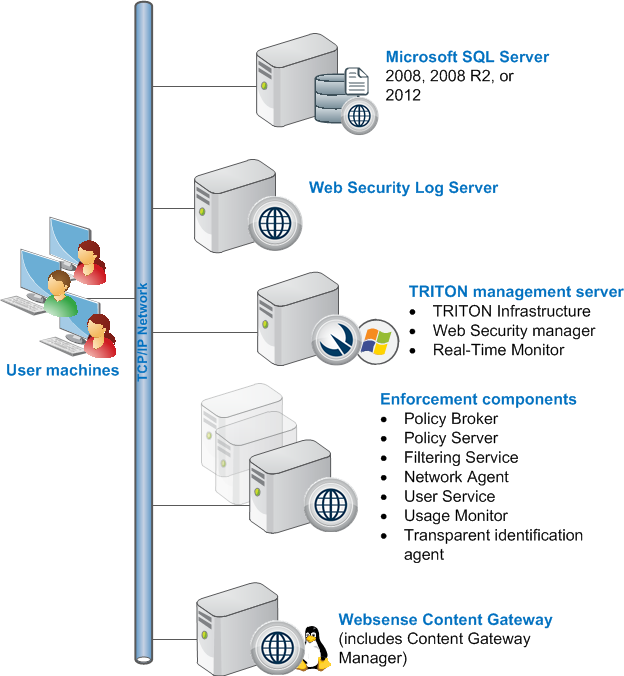

This illustration shows a basic software-based deployment of Web Security Gateway. Note that the illustration is intended to show the general distribution of components and does not include network details (such as segmenting, internal firewalls, routing, switching, and so forth).
Content Gateway and the enforcement components, except for the optional transparent identification agents, may also reside on a Websense appliance.
For more information about the core components that make up a deployment, see:
*
Deploying Web Security core components
*
Content Gateway Deployment
Web Security Gateway Anywhere deployment diagram

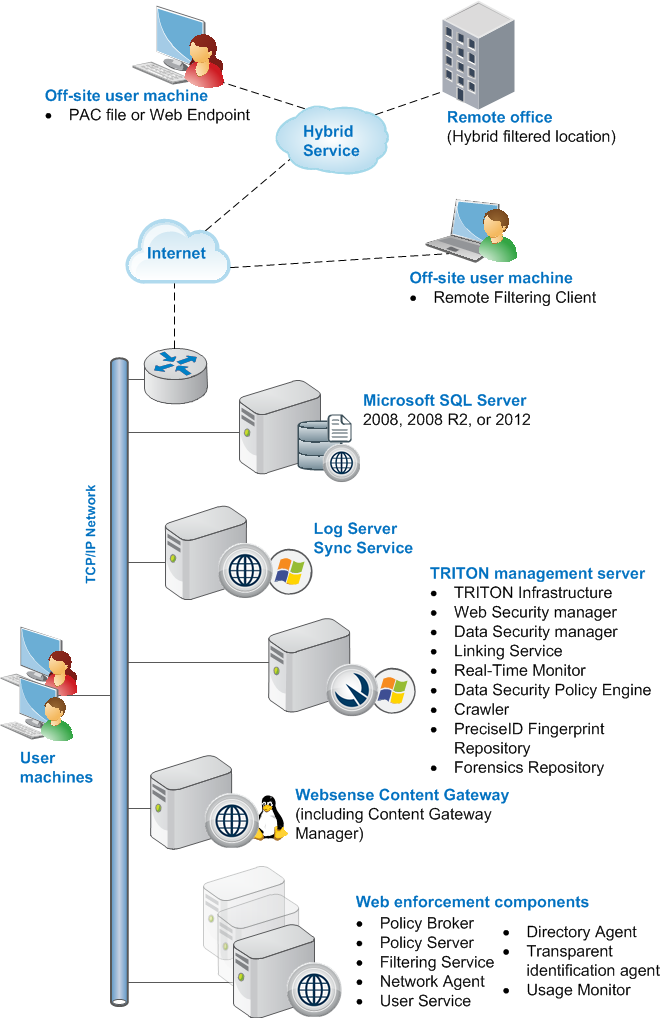

This illustration is a high-level diagram of a basic software-based deployment of Web Security Gateway Anywhere. Note that this illustration is intended to show the general distribution of components and does not include network details (such as segmenting, internal firewalls, routing, switching, and so forth).
Content Gateway and the enforcement components, except for the optional transparent identification agents, may also reside on a Websense appliance.
For more information about the core components that make up a deployment, see:
*
Deploying Web Security core components
*
Content Gateway Deployment
*
Deploying hybrid Web Security components
