Installing the Data Security module for TRITON Unified Security Center

Applies to

Web Security Gateway Anywhere v7.6

Data Security v7.6

Email Security Gateway v7.6

V10000 V7.6

V10000 G2 v7.6

V5000 G2 v7.6

Installing the Data Security module for TRITON Unified Security Center

Follow these instructions to install Data Security management components on a TRITON management server.

1.	It is assumed you have reached this point by starting a TRITON Unified Security Center installation. If not, see Creating a TRITON Management Server.

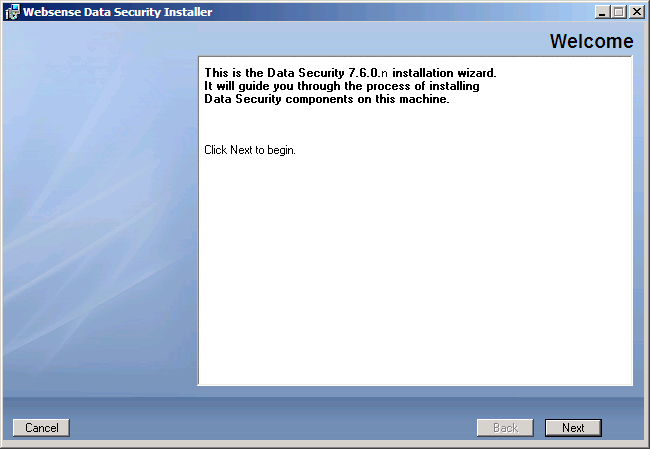

2.	Once the Websense Data Security Installer is launched, the Welcome screen appears, click Next to begin Data Security installation.

Note  If the .NET 2.0 framework is not found on this machine, the Data Security Installer installs it.

3.	In the Select Components screen, click Next to accept the default selections.



Note  If there is insufficient RAM on this machine for Data Security Management Server components, a message appears. Click OK to dismiss the message. You are allowed to proceed with the installation. However, it is a best practice to only install if you have sufficient RAM.

4.	If prompted, click OK to indicate that services such as ASP.NET and SMTP will be enabled.

Required Windows components will be installed. You may need access to the operating system installation disc or image.

5.	On the Fingerprinting Database screen, accept the default location or use the Browse button to specify a different location.

Note that you can install the Fingerprinting database to a local path only.

6.	Use the options on the Import Data From Previous Version screen to restore data from a backup of another Data Security Server if necessary.

Select the Load data from previous version check box and then use the Browse button to specify the location of the backup data you want restored.

For more information about backups, see the TRITON - Data Security Help.

7.	In the Installation Confirmation screen, click Install to begin installation of Data Security components.

8.	If the following message appears, click Yes to continue the installation:

Data Security needs port 80 free.
In order to proceed with this installation, DSS will free up this port.
Click Yes to proceed OR click No to preserve your settings.

Clicking No cancels the installation.

A similar message for port 443 may appear. Click Yes to continue or No to cancel the installation.

9.	The Installation progress screen appears. Wait for the installation to complete.

10.	When the Installation Complete screen appears, click Finish to close the Data Security installer.

11.	If no other TRITON Unified Security Center module is chosen for installation, you are returned to the Modify Installation dashboard. Installation is complete.

Otherwise, you are returned to the Installer Dashboard and the next component installer is launched.
