Remote Filtering Server and Client

Applies to

Web Filter v7.6

Web Security v7.6

Web Security Gateway v7.6

Web Security Gateway Anywhere v7.6

Remote Filtering Server and Client

For all Web Filter and Web Security solutions, you can monitor computers outside your network using remote filtering components. The Remote Filtering Client must be installed on each remote machine.

The remote clients communicate with a Remote Filtering Server, which acts as a proxy to Filtering Service. This communication is authenticated and encrypted.

Note  If you have Websense Web Security Gateway Anywhere, you can also use the hybrid service to monitor users outside your network. This does not require software installation on remote machines. See Web Security Gateway Anywhere (software-based) or Web Security Gateway Anywhere (appliance-based) for more information.

When installing remote filtering components:

The Remote Filtering Server should be installed on a dedicated machine that can communicate with the Filtering Service machine.

Do not install any Websense component on a domain controller.

Remote Filtering Server on the same machine as Filtering Service or Network Agent.

Each Filtering Service instance can have only one primary Remote Filtering Server.

As a best practice, the Remote Filtering Server should be installed inside the outermost firewall, in the DMZ outside the firewall protecting the rest of the corporate network. This is strongly recommended.

See System Requirements, for operating system requirements for Remote Filtering Server.



Network Size	Hardware Recommendations
1-500 clients	Windows or Linux Quad-Core Intel Xeon 5420 or better processor, 2.5 GHz or greater 2 GB RAM 20 GB free disk space
500+ clients	Windows or Linux Quad-Core Intel Xeon 5450 or better processor, 3.2 GHz or greater 4 GB RAM 20 GB free disk space

Remote Filtering Client system recommendations:

Pentium 4 or greater

Free disk space: 25 MB for installation; 15 MB to run the application

512 MB RAM

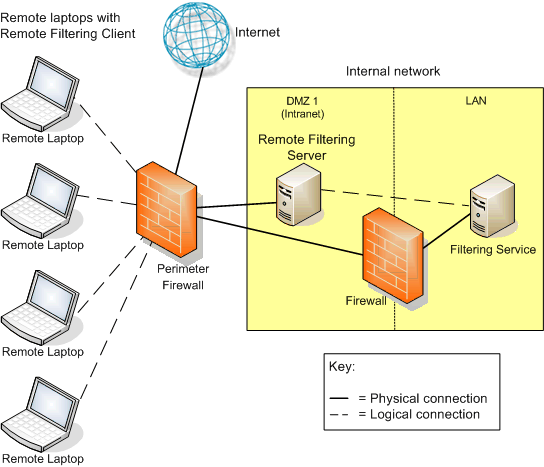

The following illustration provides an example of a Remote Filtering deployment. The illustration does not include all Websense components. For more information, see the Websense Remote Filtering Software technical paper.
