Locating Network Agent in single segment network

Applies to

Web Filter v7.6

Web Security v7.6

Web Security Gateway v7.6

Web Security Gateway Anywhere v7.6

Locating Network Agent in single segment network

A single segment network is a series of logically connected nodes (computers, printers, and so on) operating in the same portion of the network. In a single segment network, Filtering Service and Network Agent must be positioned to monitor Internet traffic across the entire network.

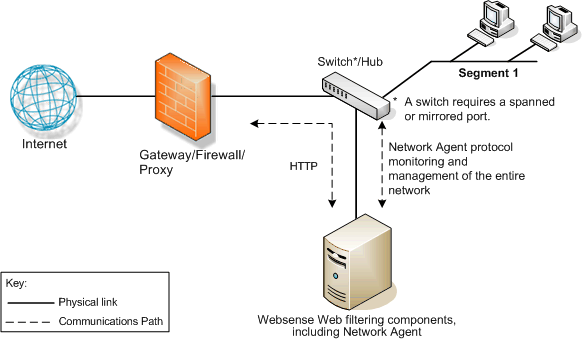

The following illustration shows the filtering components in a stand-alone deployment of Websense software, installed in a central location to see both HTTP and non-HTTP traffic.

To learn more about installing Network Agent in a network:

With a hub, see Connecting Network Agent to a hub.

With a switch, see Switched networks with a single Network Agent.

With a gateway, see Network Agent on gateway.
