Switched networks with multiple Network Agents

Applies to

Web Filter v7.6

Web Security v7.6

Web Security Gateway v7.6

Web Security Gateway Anywhere v7.6

Switched networks with multiple Network Agents

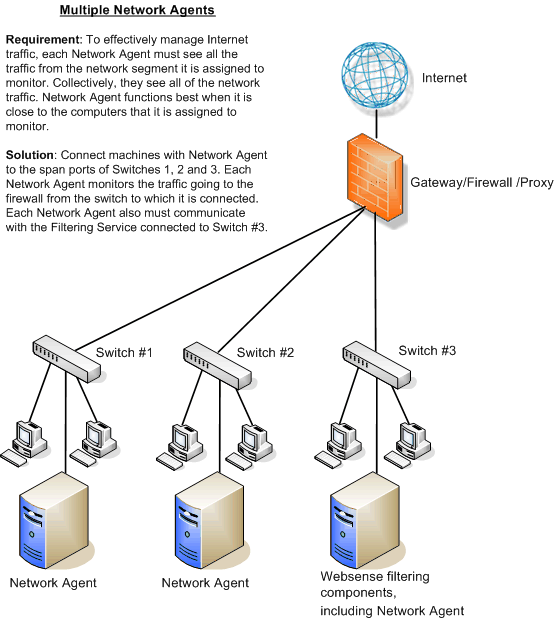

A busy network may need multiple Network Agents to monitor different network segments or IP address ranges. Network Agent operates best when it is close to the computers it is assigned to monitor. The following illustration shows a network in which multiple Network Agent instances monitor separate network segments.

See Deploying multiple Network Agents, for more information.
