Creating a TRITON Management Server

Creating a TRITON Management Server

Applies to

Web Filter v7.6

Web Security v7.6

Web Security Gateway v7.6

Web Security Gateway Anywhere v7.6

Email Security Gateway v7.6

Data Security v7.6

In this topic

Overview

Preparing for installation

Installing TRITON Unified Security Center

Overview

TRITON management server is the term used to refer to the machine on which TRITON Unified Security Center, along with certain optional components, are installed. It is "created" by installing these components on a suitable machine (see System Requirements).

Important  To enable more than one of its modules (i.e., TRITON - Web Security, - Data Security, and - Email Security), TRITON Unified Security Center must be installed on Windows Server 2008 R2 (64-bit). Note that TRITON - Email Security requires TRITON - Data Security, so it must be installed on Windows Server 2008 R2.

Typically, there is only one TRITON management server in an entire deployment. It serves as the central point for management, configuration, and reporting.

Preparing for installation

Review the information in Preparing for Installation. Perform any necessary preparation steps, e.g., disabling firewall and antivirus.

Installing TRITON Unified Security Center

Do not install any Websense components on a domain controller.

1.	Download or copy the Websense installer to this machine.

See Preparing for Installation for instructions.

2.	Double-click the downloaded installer to launch the Websense installer.

A progress dialog box appears, as files are extracted.

3.	On the Welcome screen, click Start.

4.	On the Subscription Agreement screen, select I accept this agreement and then click Next.

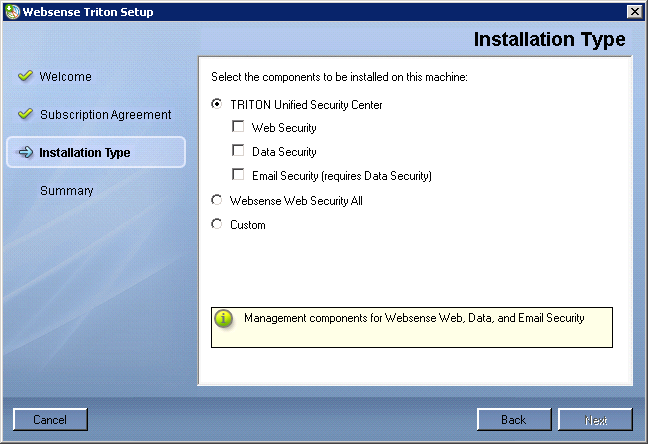

5.	On the Installation Type screen, select TRITON Unified Security Center and the modules you want to install (Web Security, Data Security, and Email Security).

Note  The TRITON Unified Security Center modules are management components only. Selecting them does not install components for any other function. Non-management components are installed using the Websense Web Security All or Custom options.

See the following table for information about which modules you should select for installation.

Solution	TRITON Unified Security module
	Web Security	Data Security	Email Security
Web Filter	X
Web Security	X
Web Security Gateway	X
Web Security Gateway Anywhere	X	X
Data Security		X
Email Security Gateway (Anywhere)		X	X
Note: If your subscription includes a combination of these solutions, install all of the modules required by them. For example, if your subscription includes both Web Security Gateway and Email Security Gateway, then install all three modules.



Important  To install the Web Security module of the TRITON Unified Security Center, Policy Server must be already installed and running on a machine in your network. If it is not, cancel this installation and use a custom installation to install it (see Custom Deployment). In a Websense-appliance-based deployment, Policy Server is already installed and enabled on an appliance running in full policy source or user directory and filtering mode.

When you select Email Security, Data Security is selected automatically as well because it is required for email DLP (data loss prevention) features.

Important  To install the Email Security module of the TRITON Unified Security Center (i.e., TRITON - Email Security) an Email Security Gateway appliance must already be in your network. You will need to provide the appliance's C interface IP address during installation of TRITON - Email Security.

6.	On the Summary screen, click Next to continue the installation.

7.	TRITON Infrastructure Setup launches.

Follow the instructions in Installing TRITON Infrastructure.

8.	When you click Finish in TRITON Infrastructure Setup, component installers for each module selected, in the Module Selection screen (Step 5), will be launched in succession.

Only the component installers for the modules you have selected will be launched. For example, if you select only Web Security and Data Security, then the Email Security installer will not be launched.

9.	Complete the following procedures for the modules you have selected. For each module, a component installer will launch.The components installers launch in the order shown here.

Installing the Web Security module for TRITON Unified Security Center

Installing the Data Security module for TRITON Unified Security Center

Installing the Email Security module for TRITON Unified Security Center
